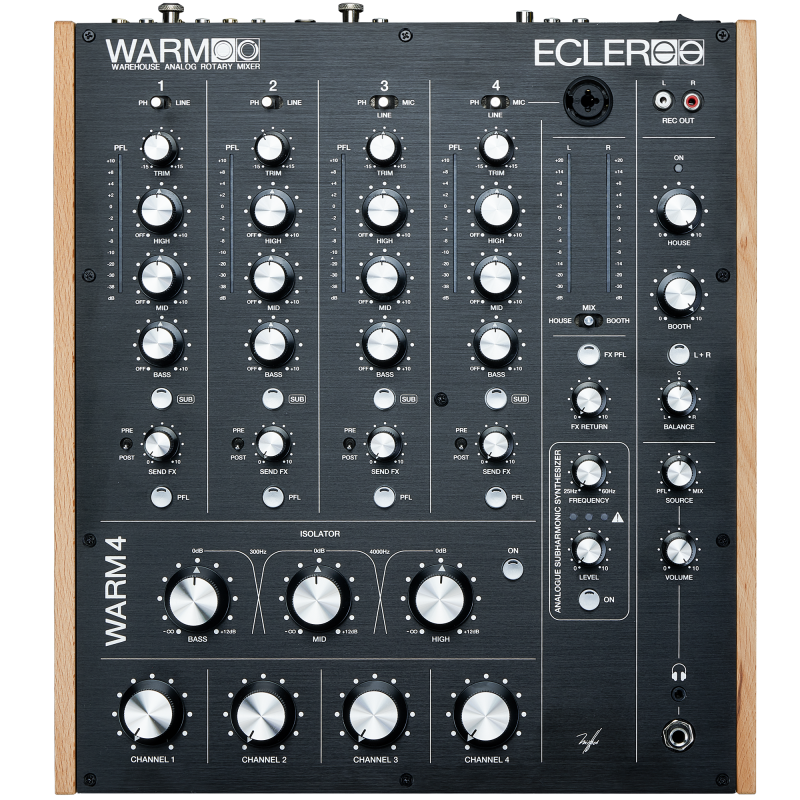

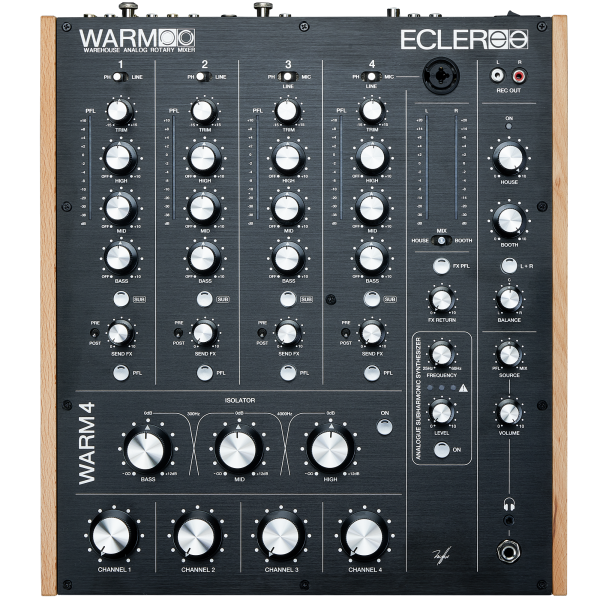

4 Mixing channels.
4 PHONO inputs.
4 LINE inputs.
2 MICRO inputs.

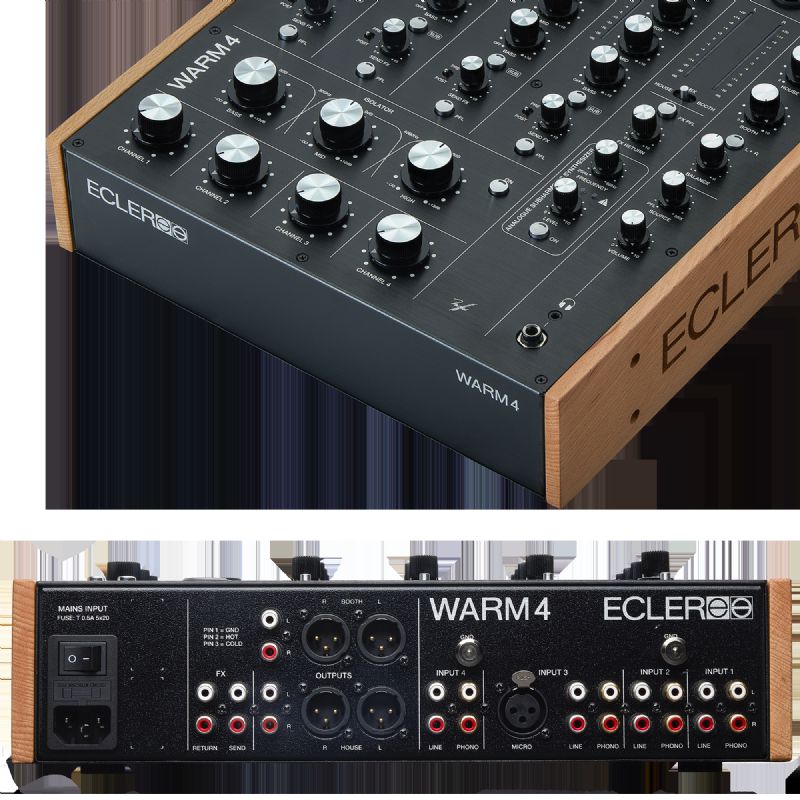

Master Output on XLR and RCA connectors.
Booth Output on XLR and RCA connectors.
Headphone Monitor Output on 6.3mm Jack and 3.5mm mini-jack.
3 Band full EQ cut.
3 Band Isolator (300Hz and 4KHz, -8/+12dB, 4th order 24dB/oct ).
Analogue Subharmonic Synthesizer for sub-bass frequency reinforcement selectable per channel.
Maximum Output without distortion: 21dBV (23dBu).
FX Send control and Pre/Post fader selector per channel.
FX Return control and PFL.
Alps metal shaft high quality potentiometers.
Mechanized from a solid block of aluminium knob, without visible screw. Ecler Unique design.
Wooden side panels included.
