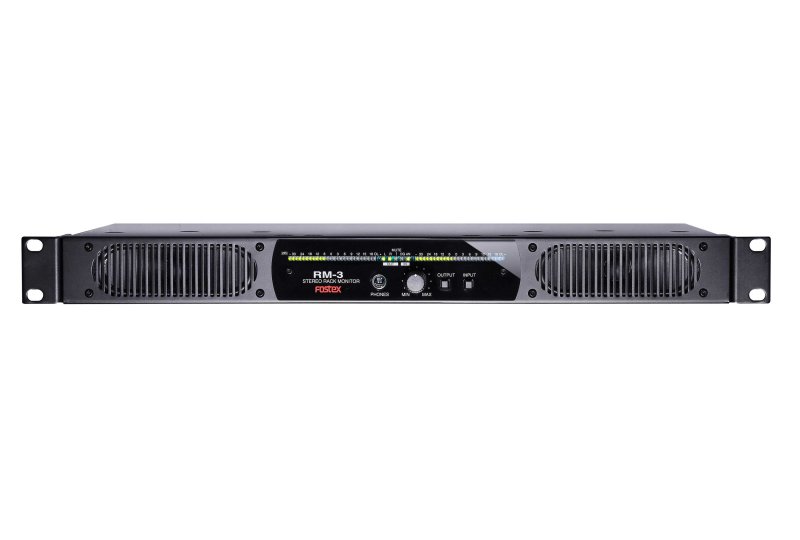

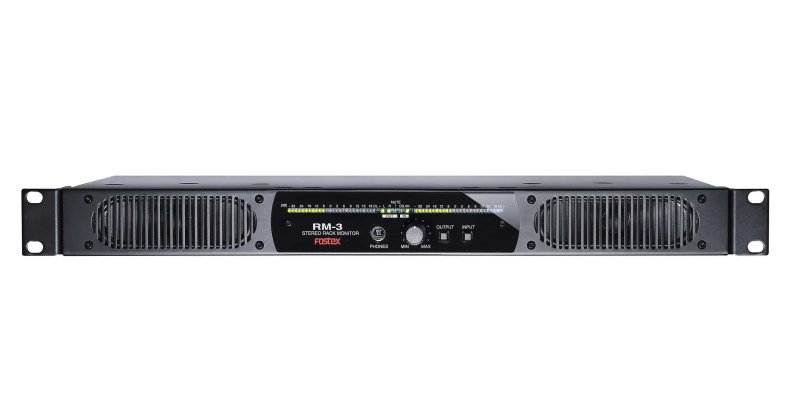

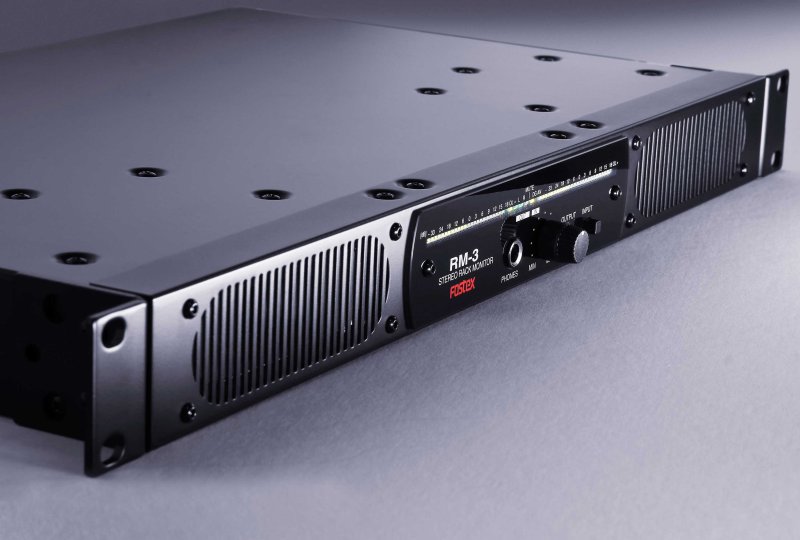

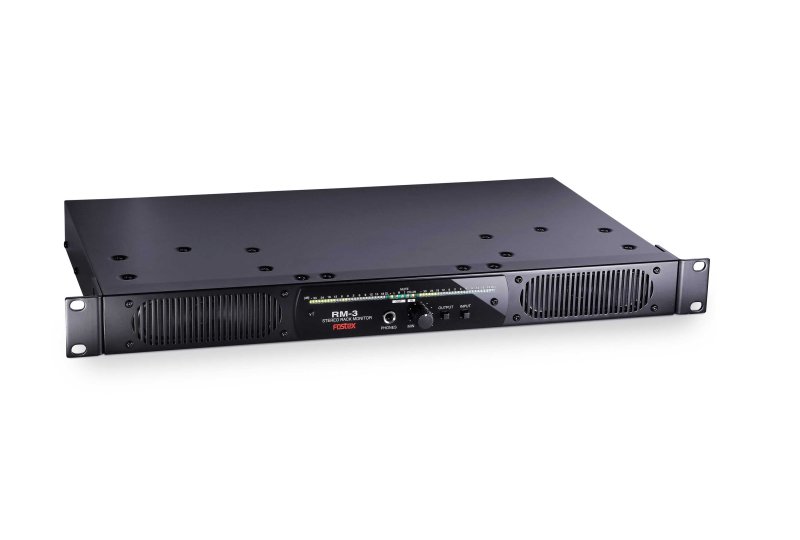

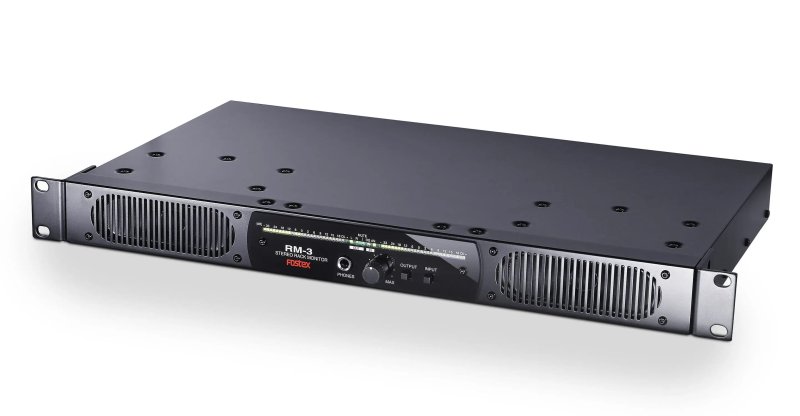

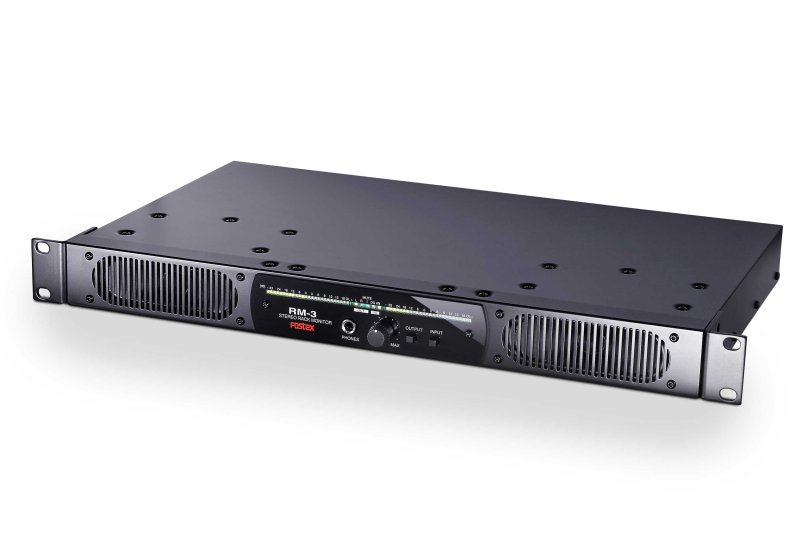

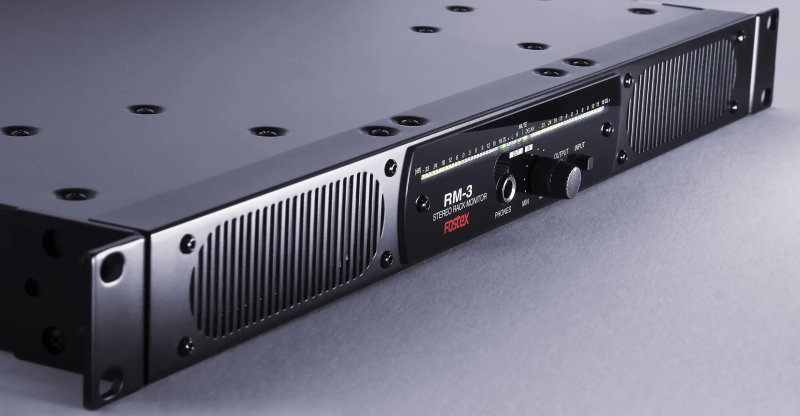

1U size stereo monitor speakers with amplifier.
Supports balanced/unbalanced analog input and AES/EBU digital input. Power-saving design with digital amplifier and switching power supply. 26-dot LED level meter supports VU and PEAK display.

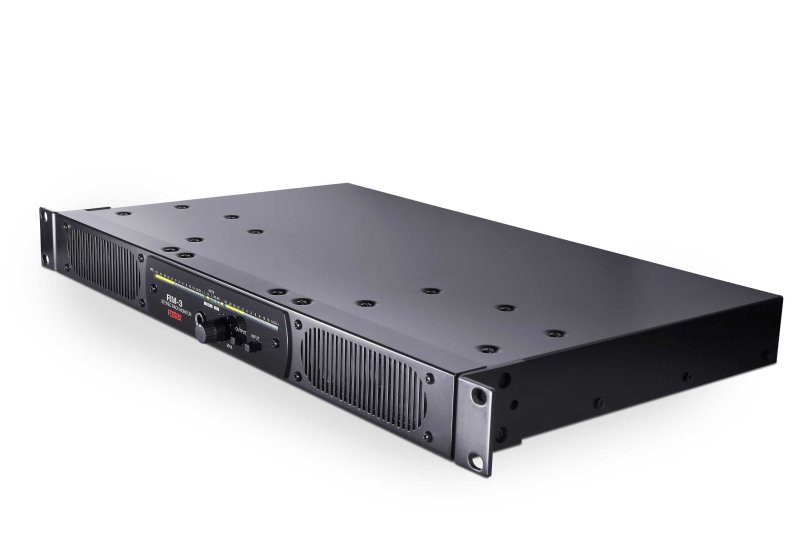

Space-saving 1U size and mountable in an EIA standard rack (rack mounting angle is removable).
JIS standard racks are not supported.
Class-D power amplifier with a maximum output of 10W + 10W.
Equipped with 2 x 110 x 40 mm magnetic shielded elliptical cone full-range speakers.

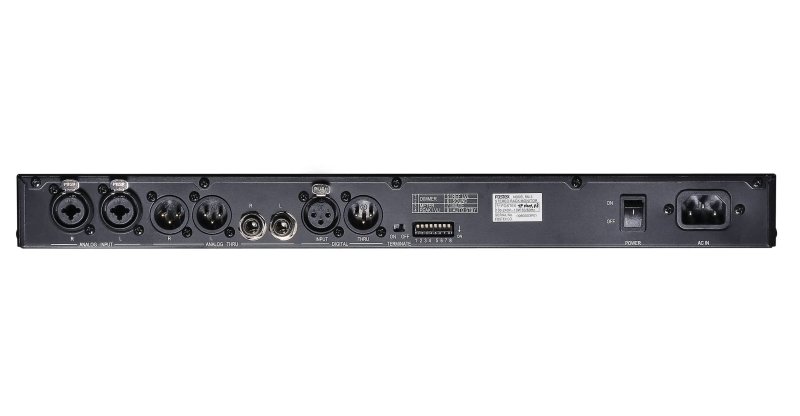

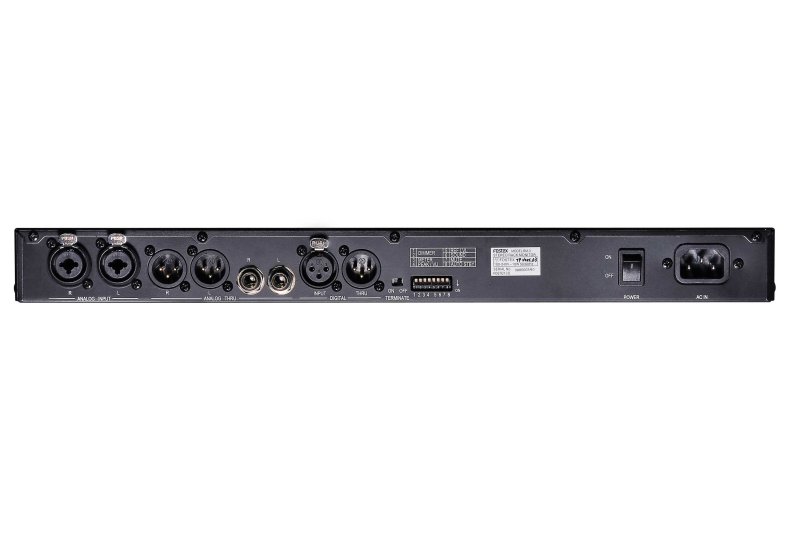

Analog input (XLR and PHONE combo type) and digital input (XLR, AES/EBU). Through-out for each input is also provided.
Headphone output (20mW + 20mW). Speaker output is muted when headphones are used (plugged in).
Equipped with mute and input source select switches.
MUSIC and VOICE modes are provided. The playback frequency range can be selected according to the sound source and usage conditions.
Monitor output can be selected from STEREO, L, R, or L+R.
Highly visible 26-dot LED meter (L/R). LED brightness can be adjusted in four levels using the DIP switch on the rear panel.
The LED brightness can be adjusted in four levels using the DIP switch on the rear panel.
Standby mode is provided to suppress power consumption to 0.5W or less by keeping the input signal below a certain volume level for 4 hours or by pressing and holding the mute button (approx. 5 seconds).
