Speaker section:
Unit: 110 x 40 mm cone type, magnetically shielded
Impedance: 8 Ω
Sound Pressure Level: 84 dB/W(1 m)
Frequency response: 200 Hz to 20 kHz
Power Amplifier Section:
Maximum output: 10 W x 2
Residual noise: -50 dBV or less (DIN AUDIO)
Distortion rate: 0.1% or less

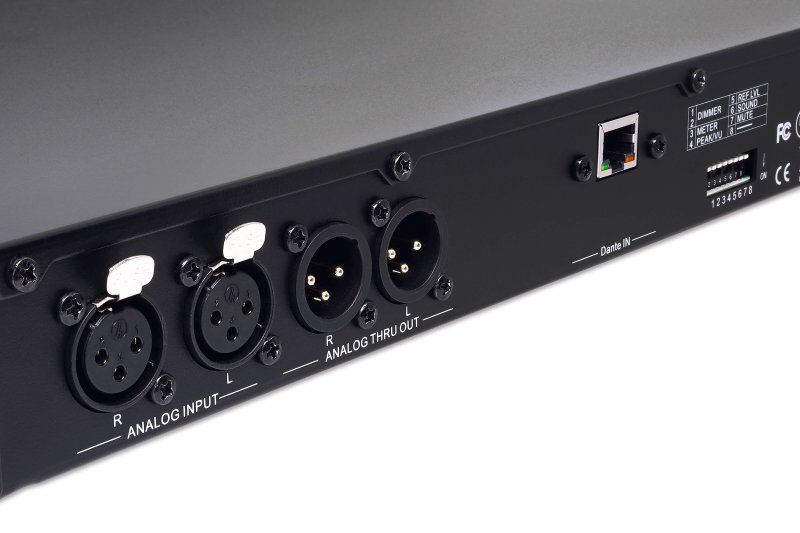

Dante Input: Connector: Input RJ45, Format: Dante
Analog input: Connector: XLR-3-31 type, Rated input level: XLR (balanced): +4/0 dBu, Input Impedance: 10 kΩ min.
Analog THRU output: Connector: XLR-3-32 type
Phones: Connector: Φ6.3 mm stereophone, Applicable load: Impedance 16 Ω or more, Maximum output: 20 mW+20 mW (32 Ω, 1 kHz)

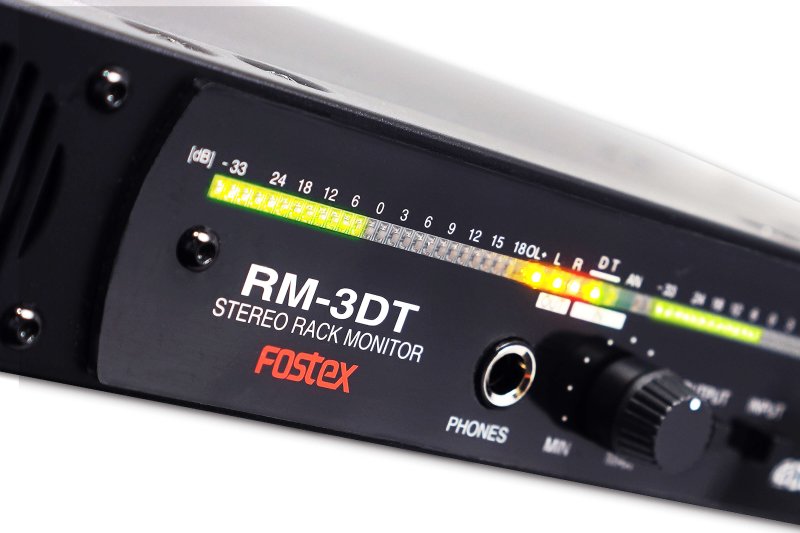

Level meter: Display: 26-dot LED x 2, Reference level: analog XLR: +4/0 dBu
General:
External Dimensions: 482(W)×44(H)×284(D) (including protrusions)
Weight: Approx. 3.5 kg
Power requirement: AC100 V to 240 V 50/60 Hz
Power consumption: 10 W
