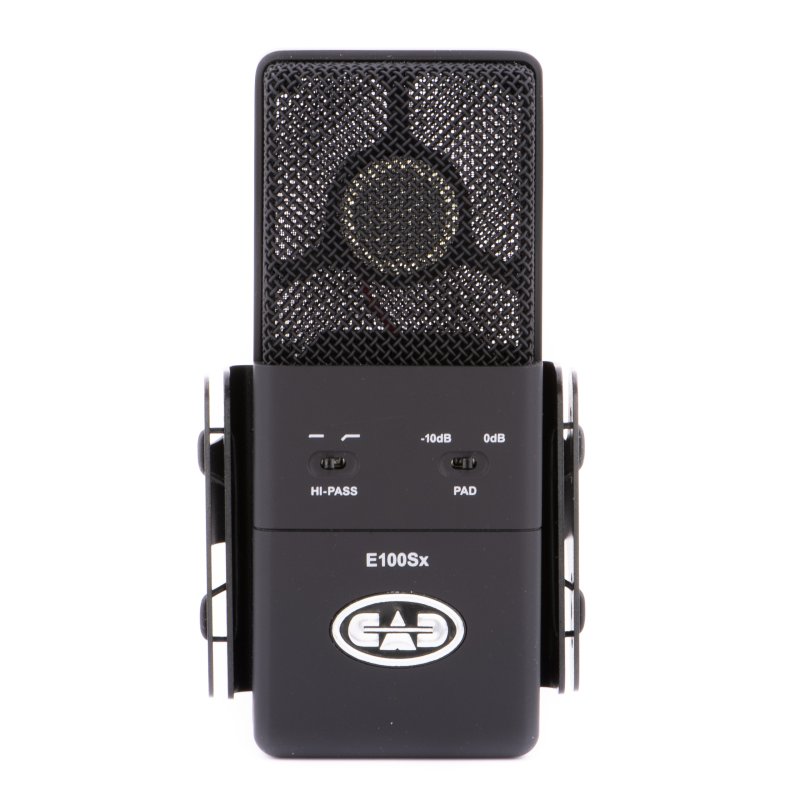

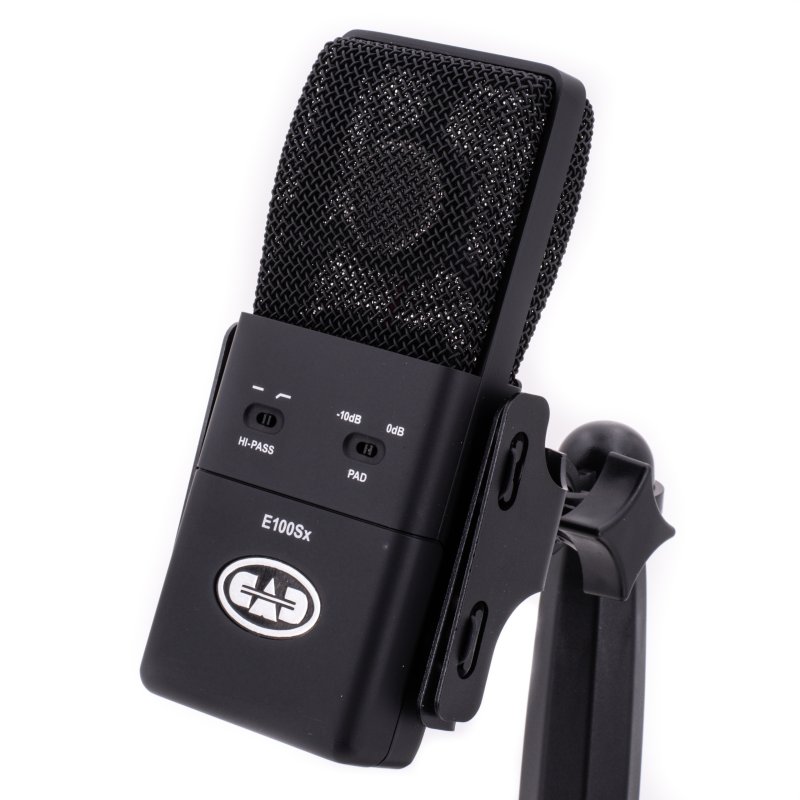

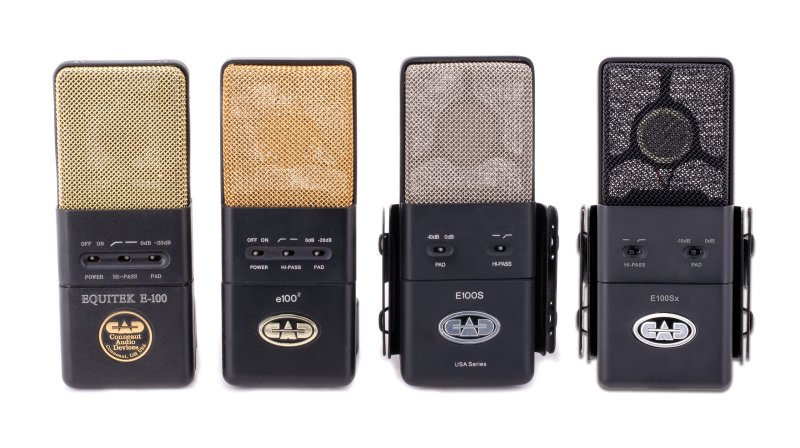

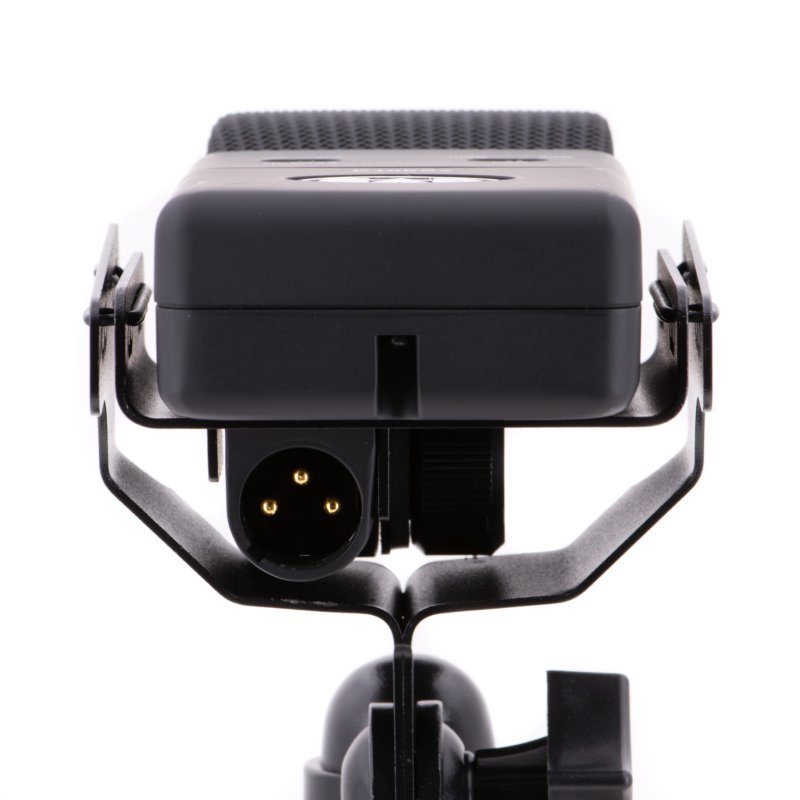

Equitek™ series microphones are world-renowned for their quality and performance – the product of industry artisans engineering original designs with world-class performance and specifications. The fourth generation E100, the new E100Sx Large Diaphragm Studio Microphone continues the 30 year tradition of excellence and captures your performance with a smooth, articulate and true-to-life profile, with the smooth, vintage tone CAD is known for.
| Specification |
Details |
| Operating Principle |
Condenser |
| Polar Pattern |
Supercardioid |
| Frequency Response |
20 Hz - 18 kHz |
| Sensitivity |
-32 dBV (25 mV) @ 1 Pa |
| Impedance |
150 ohms |
| Max SPL |
136 dB (with pad engaged) |
| Self Noise |
9.5 dBA |

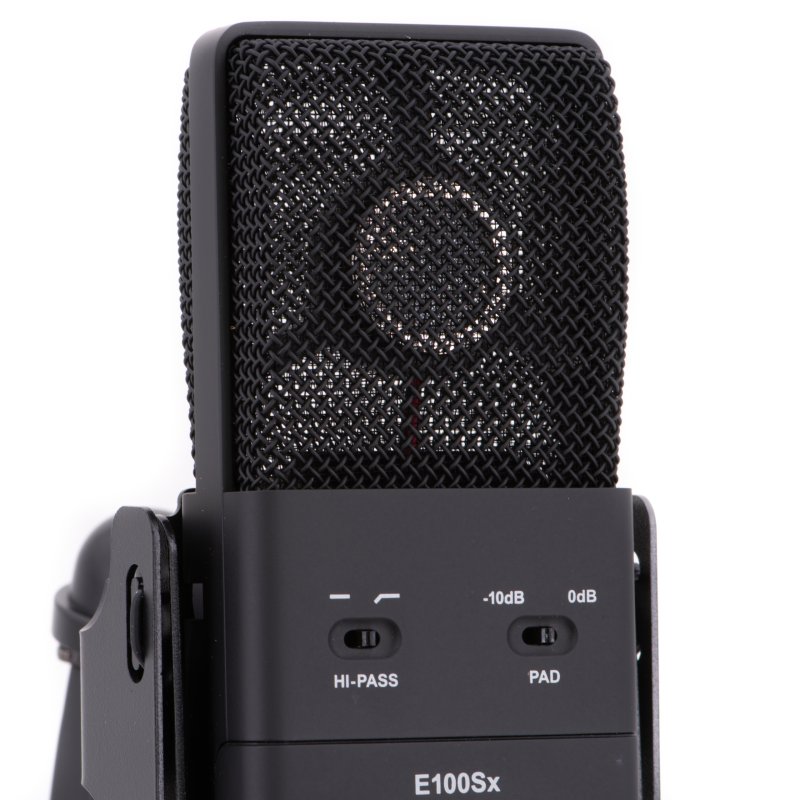

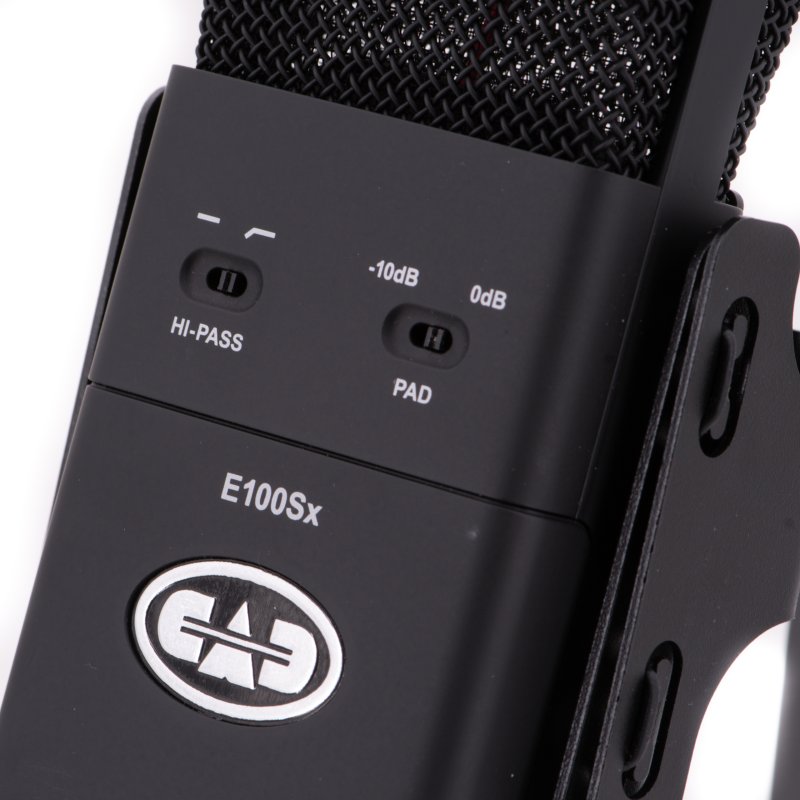

| High Pass |
100 Hz, 6 dB/oct |
| Dimensions - Mic Only |
6.0625" (15.4 cm) tall × 2.245" (5.7 cm) wide × 1.990" (5.05 cm) deep |

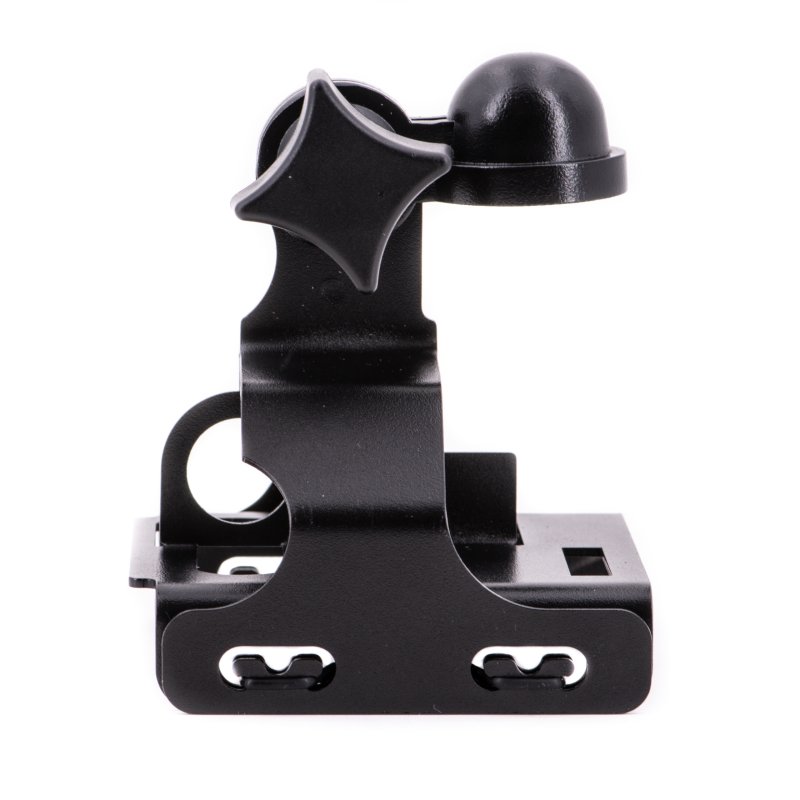

| Dimensions - With Shock Mount |
6.0625" (15.4 cm) tall × 2.903" (7.37 cm) wide × 5.4375" (13.81 cm) deep |
| Power Requirements |
P48, 1.6 mA |
| Weight |
1.98 lbs (0.9 kg) |
| RoHS |
Compliant |
