Allen & Heath

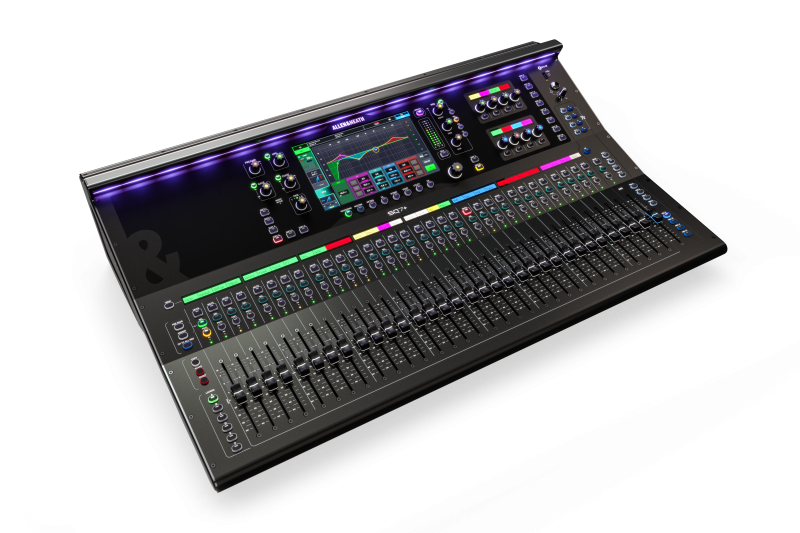

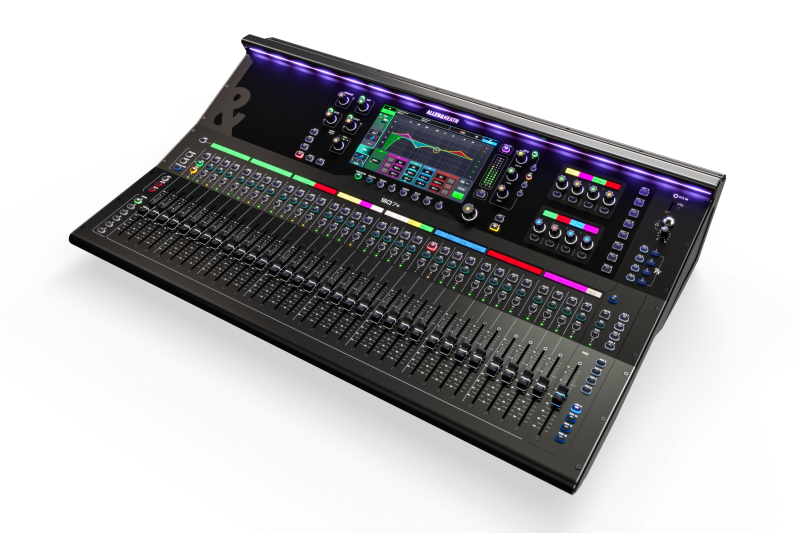

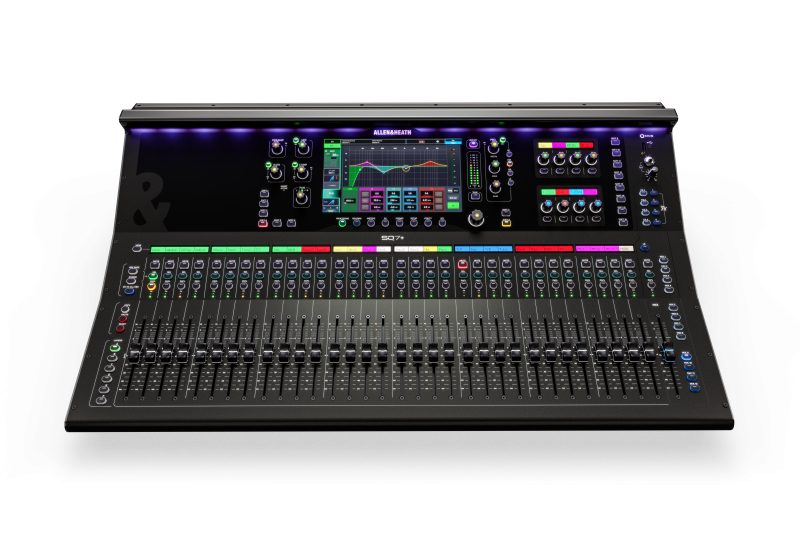

Allen & Heath SQ7+ RackUltra FX Enabled 48-Channel Digital Mixer with DEEP Processing

Model: AH-SQ-7-PLUS
UPC: 5056756902780
New
Please log in to see your price
The SQ7+ is the largest mixer in the range, built for engineers who need the ultimate in hands-on control
Related products
About This Product

Description:

The SQ7+ is the largest mixer in the range, built for engineers who need the ultimate in hands-on control. 33 motorised faders, 16 assignable SoftKeys and 8 SoftRotaries put your entire show within reach, all backed by the same 96kHz XCVI core and 4 built-in RackUltra FX engines that power every SQ+ model.

With a 48-input channel 96kHz XCVI core for ultra-low latency and phase coherent mixing, alongside incredible connectivity options - the SQ range continues to be class leading and the go-to solution for owner operators, mid-sized venues, small tours and anywhere audio quality and interoperability are vital.

The SQ7+ upgrades the SQ-7 with more processing power, a larger 9” touchscreen with reimagined GUI and a clean ‘carbon-on-graphite’ update to the surface artwork and controls.

All SQ+ models also include 4x RackUltra FX engines with dedicated send and return channels and the ability to run the latest DEEP channel processing.

96kHz XCVI Core

48x Input Processing Channels

Stereo Main LR

12x Mono/Stereo, Group/Aux Mixes

4x FX Sends

4x RackUltra FX Sends

6x Mono/Linkable Matrix

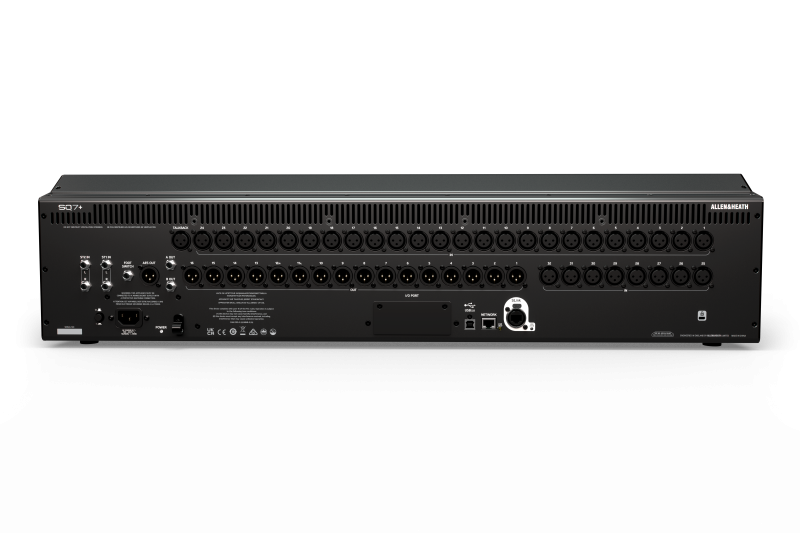

32x XLR Mic/Line Input Sockets

3x Stereo Line Input Sockets (2x TRS, 1x 3.5mm Stereo Jack)

1x XLR Talkback Socket

16x XLR Output Sockets

2x TRS Output Sockets

1x AES3 Stereo Digital Output Socket

128x128 Intelligent SLink Port for Everything I/O expansion and system connections

Stereo Headphone Output

8x FX Engines with dedicated Stereo Return Channels

4x RackUltra FX Engines with dedicated Stereo Return Channels

9” Capacitive Touchscreen

33x 100mm Motorised Faders

6x Customisable Channel Strip Layers

16x Soft Keys

8x Soft Rotaries

USB-A stereo/multichannel audio record/playback and data transfer

USB-B Audio interface for multichannel record/playback (32x32)

Configurable dual Footswitch Connection

Configurable Chromatic Channel Meter LED’s

IEC Mains Connection with Worldwide PSU

RJ45 Network Socket

Remote network control via free apps

more
