Allen & Heath

Allen & Heath SQ5+ RackUltra FX Enabled 48-Channel Digital Mixer with DEEP Processing

Model: AH-SQ-5-PLUS
UPC: 5056756902582
New
Please log in to see your price

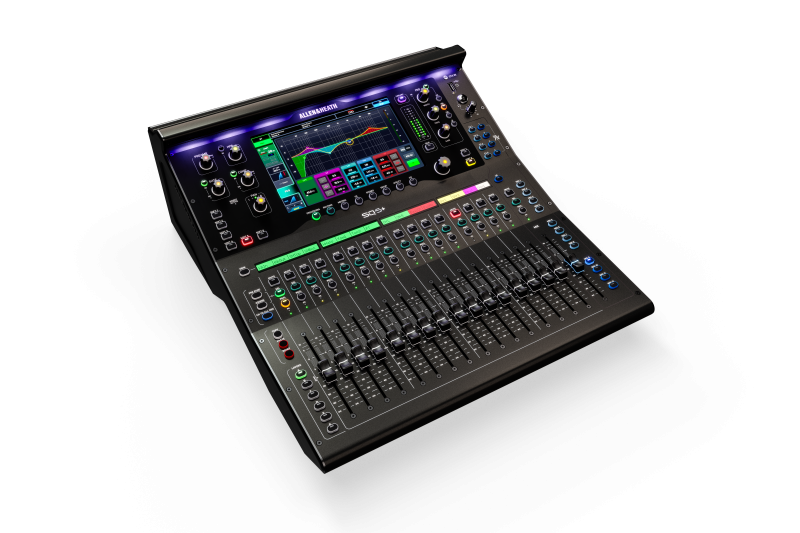

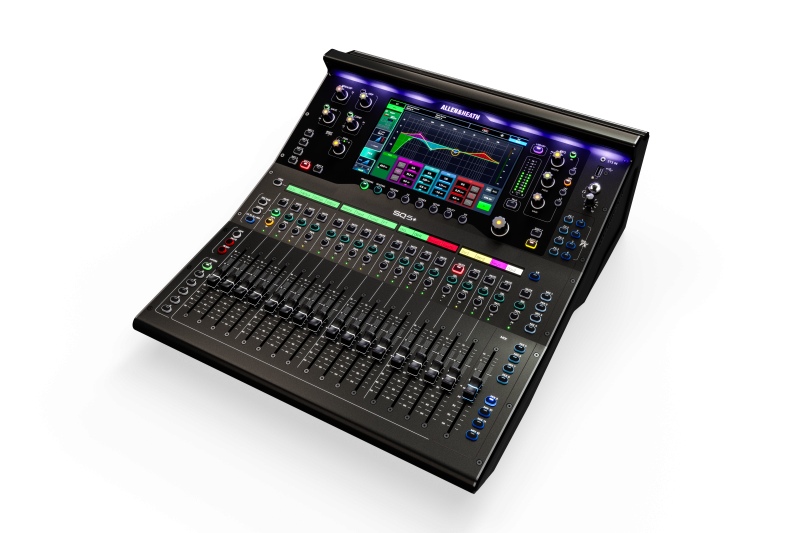

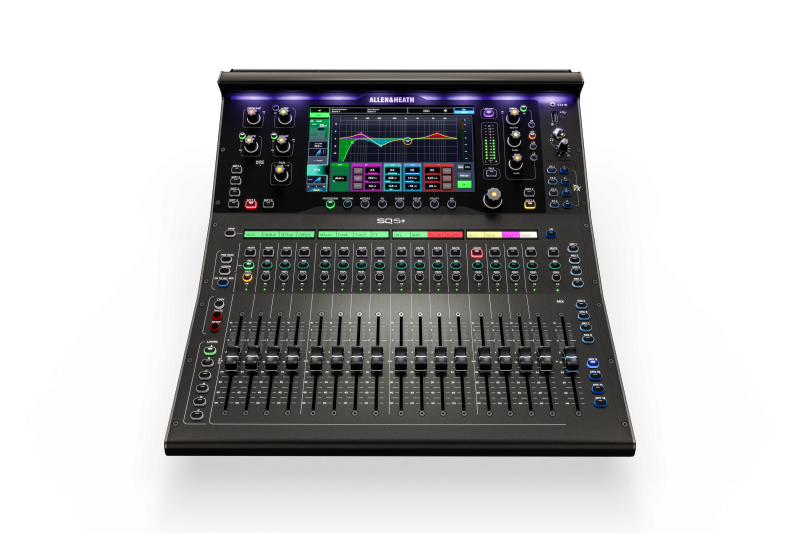

Compact and rack-mountable, the SQ5+ puts the full feature set into the smallest frame in the range
Related products
About This Product

Description:

Compact and rack-mountable, the SQ5+ puts the full feature set into the smallest frame in the range. 17 motorised faders, 8 assignable SoftKeys and 4 built-in RackUltra FX engines give you flagship-tier processing and comprehensive hands-on control. Add the 19” rack kit and it's as at home in a fixed installation as it is on the road.

With a 48-input channel 96kHz XCVI core for ultra-low latency and phase coherent mixing, alongside incredible connectivity options - the SQ range continues to be class leading and the go-to solution for owner operators, mid-sized venues, small tours and anywhere audio quality and interoperability are vital.

The SQ5+ upgrades the SQ-5 with more processing power, a larger 9” touchscreen with reimagined GUI and a clean ‘carbon-on-graphite’ update to the surface artwork and controls.

All SQ+ models also include 4x RackUltra FX engines with dedicated send and return channels and the ability to run the latest DEEP channel processing.

96kHz XCVI Core

48x Input Processing Channels

Stereo Main LR

12x Mono/Stereo, Group/Aux Mixes

4x FX Sends

4x RackUltra FX Sends

6x Mono/Linkable Matrix

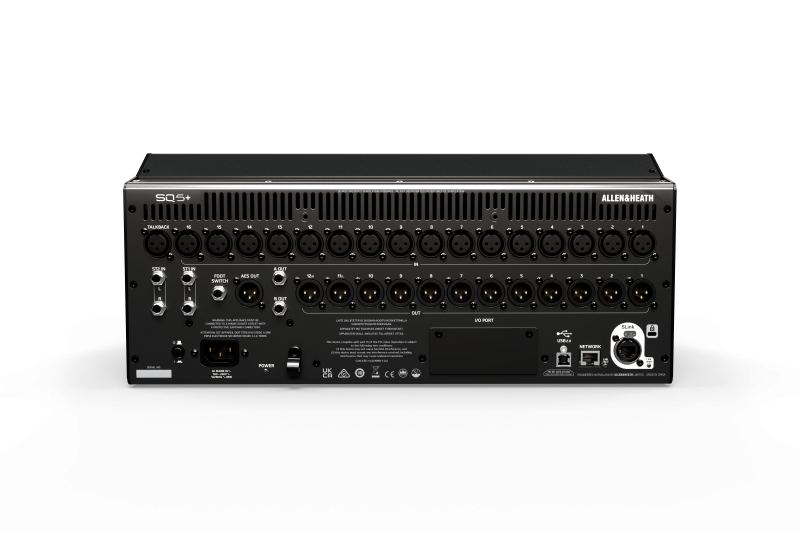

16x XLR Mic/Line Input Sockets

3x Stereo Line Input Sockets (2x TRS, 1x 3.5mm Stereo Jack)

1x XLR Talkback Socket

12x XLR Output Sockets

2x TRS Output Sockets

1x AES3 Stereo Digital Output Socket

128x128 Intelligent SLink Port for Everything I/O expansion and system connections

Stereo Headphone Output

8x FX Engines with dedicated Stereo Return Channels

4x RackUltra FX Engines with dedicated Stereo Return Channels

9” Capacitive Touchscreen

17x 100mm Motorised Faders

6x Customisable Channel Strip Layers

8x Soft Keys

USB-A stereo/multichannel audio record/playback and data transfer

USB-B Audio interface for multichannel record/playback (32x32)

Configurable dual Footswitch Connection

Configurable Chromatic Channel Meter LED’s

19” Rack Mountable (optional kit available)

IEC Mains Connection with Worldwide PSU

RJ45 Network Socket

Remote network control via free apps

more
Specifications
