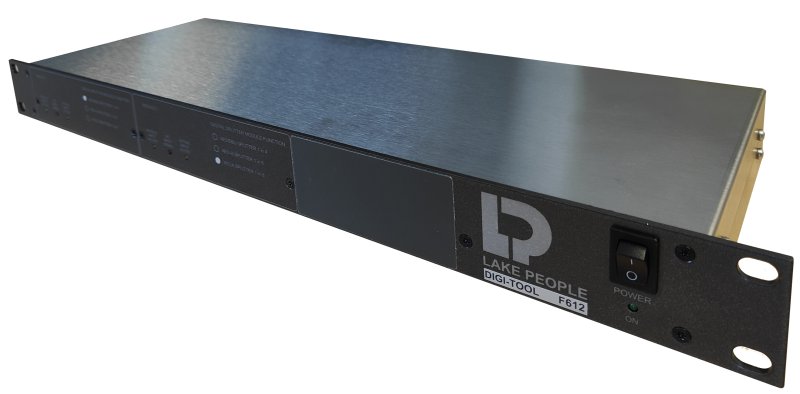

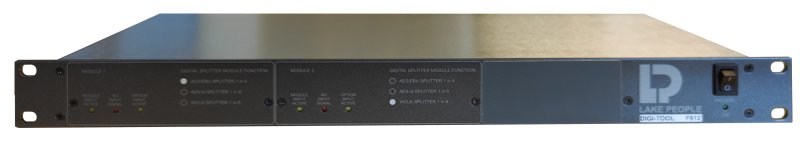

The F612 is a digital distribution amplifier for AES/EBU, SPDIF and Wordclock signals with a total of 2 inputs and 4+8 outputs. The device consists of two modules:
AES/EBU distributor with 1 input and 4 outputs with the following features:

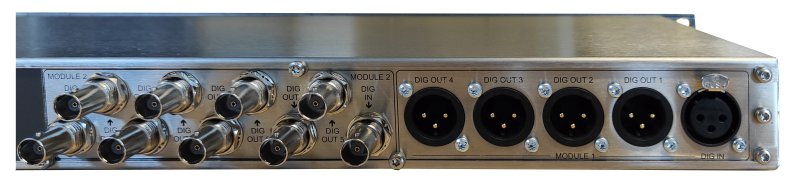

All inputs and outputs are transformer-balanced, impedance 110 ohms, via gold-plated XLR sockets according to AES 3/11
Highly sensitive inputs for regenerating unclean and smoothed signals
High output voltages to bridge large distances
WCLK or SPDIF distributor with 1 input and 8 outputs with the following features:
Inputs and outputs unbalanced, impedance 75 ohms via BNC sockets
Highly sensitive inputs to regenerate unclean and smoothed signals
High output voltages for bridging large distances
Output impedance can be switched from 75 ohms to 50 ohms via jumpers to operate dirty WCLK inputs
Switchable to SPDIF
via jumpers - Switchable to “Superclock 256 Fs” via jumpers
optional MULTI-SYNC UNIT
