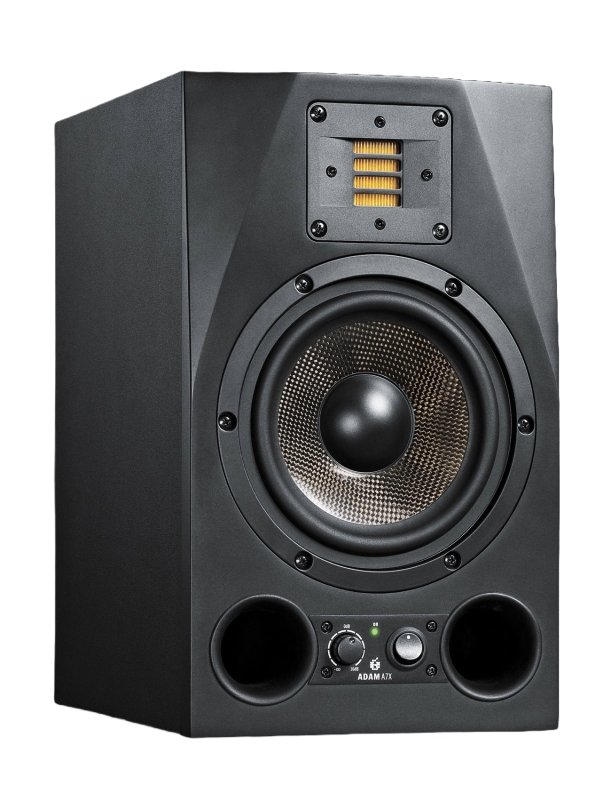

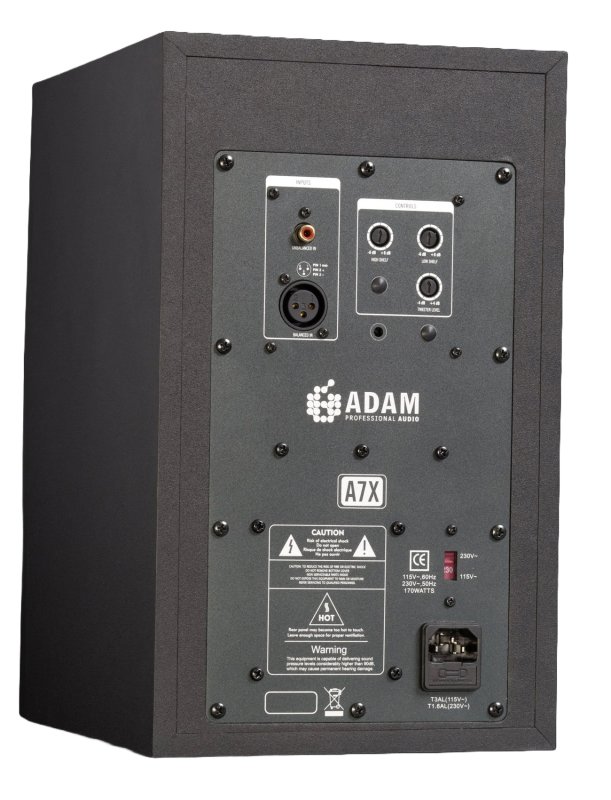

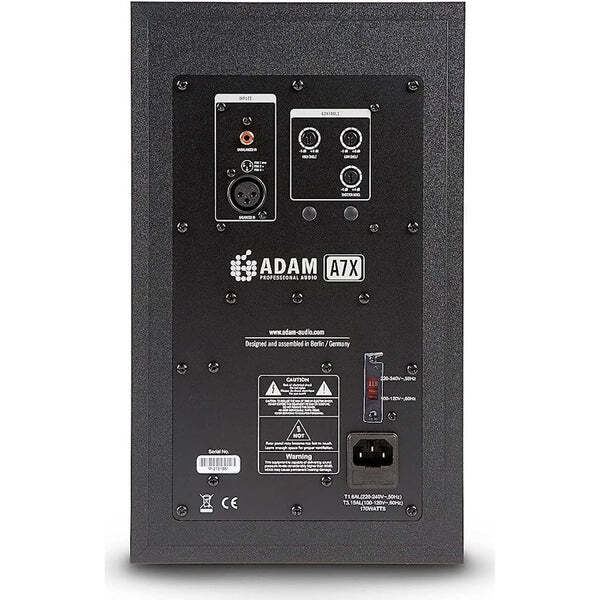

The A7X‘s ability to exactly reproduce every sonic detail no matter how small, its translucent sound image, tonal depth and stereo localization inspires music producers and explains why it is by far the most reviewed and award-winning monitor in recent years. Cabinet- and bass reflex-construction Like the other AX-Series models, the upper corners of the A7X are slanted to minimize reflections. The very large, double bass reflex tubes on the front have been specifically designed to perfectly match the midwoofer with its large voice coil. Amplification and controls The tweeter is driven by a 50 Watt A/B amplifier and the bass/mid-woofer by a 100 Watt PWM amplifier. This achieves a very clean and nuanced reproduction of the midrange frequencies with a seamless transition in the crossover from the 7" woofer, which operates in the range of 42 Hz to 2.5 kHz, towards the handmade X-ART tweeter. Besides the volume control and power button on the front panel, the rear panel offers several more controls: a gain for the high frequencies (4 db) and two shelf filters for the high and low frequencies. |
