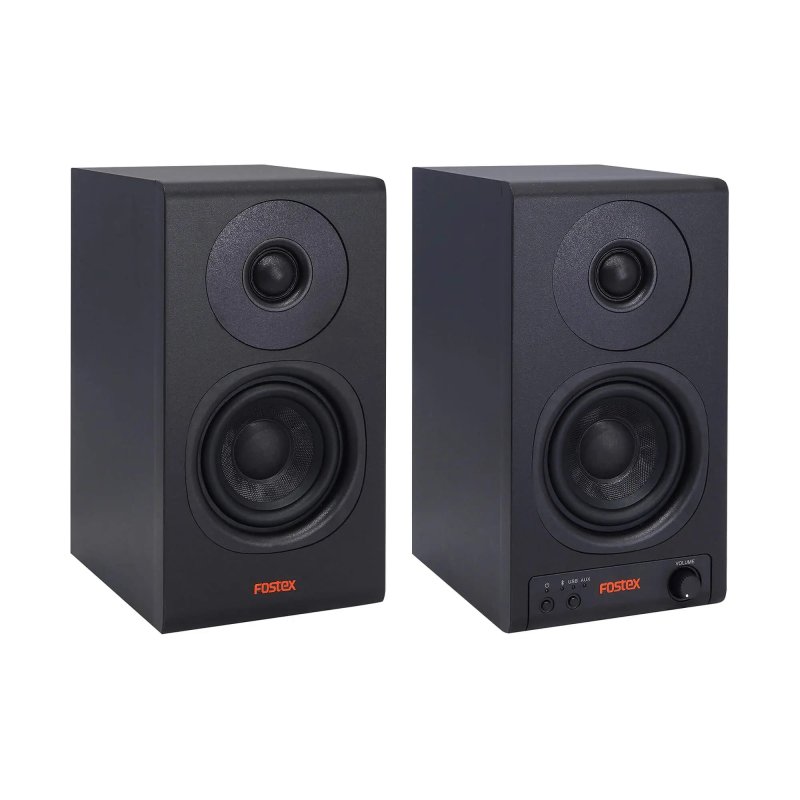

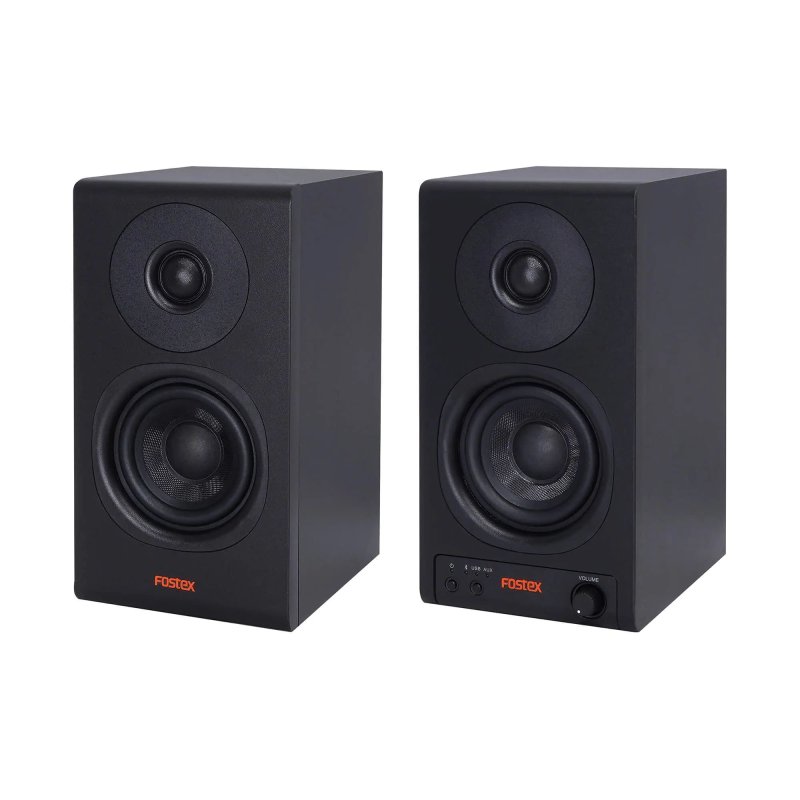

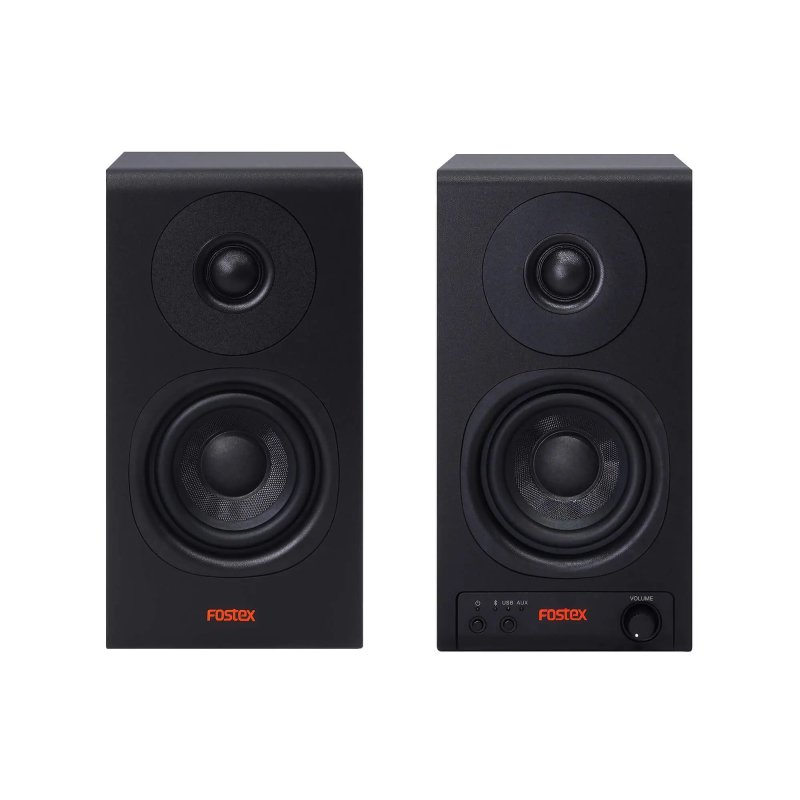

Fostex PM0.3BD Active Speaker with Bluetooth and USB-DAC (Pair)

Model: AMS-PM0-3BD
UPC: 636827309448
Please log in to see your price
PM0.3BD active speakers with built-in Bluetooth and USB-DAC for enjoying subs music and video streaming with high-quality sound.
Related products
About This Product

Description:

Active speakers with built-in Bluetooth and USB-DAC for enjoying subs music and video streaming with high-quality sound.
The speakers are equipped with a "MUSIC/VOICE" mode switching function that allows the user to switch sound quality according to the application, such as listening to PC audio or monitoring video streaming, while the DSP provides precise adjustment. The system provides a powerful sound space on the desktop for PC sound sources, subscriber music and video, entertainment, and games.

"MUSIC / VOICE" mode switch for switching sound quality according to the type of sound source being played.

The “MUSIC” mode is suitable for PC audio, listening with smartphones, DTM, etc. The “VOICE” mode is suitable for monitoring mainly voice, such as narration on Internet distribution.

Input sources are digital (Bluetooth / USB) and analog (AUX).
Multiple inputs can be switched, such as Bluetooth for smartphones, USB for PCs, and analog for audio interfaces.

Newly designed 75 mm woofer and 19 mm soft dome tweeter.
The glass fiber diaphragm woofer and silk dome tweeter, combined with precise sound quality adjustment by DSP, provide high-quality sound that is compatible with high-resolution sound sources, from low frequencies with a rich sense of volume to taut midrange and extended high frequencies.

Separated the structure of the enclosure and amplifier section.
The enclosure is made of wood for natural resonance. The active speaker (right side) has a structure that separates the enclosure from the amplifier section to isolate unnecessary air vibration of circuit components caused by sound inside the enclosure and to bring out the full performance of the 15 W + 15 W digital amplifier. Furthermore, the passive speaker (left side) has the same volume as the left and right enclosures through the same separation structure to suppress the difference in sound quality caused by the difference in volume between the left and right enclosures.

Volume control and input source selection are available on the front panel.
The volume knob and input selector on the front of the main unit ensure excellent operability.

Equipped with subwoofer connection terminal
A dedicated terminal is provided for easy connection of an active subwoofer, such as PM-SUBmini2, which enhances the realism and power of live performances.

UL Energy Verified certification for superior energy-saving performance.
Power saving mode is provided to reduce power consumption after 15 minutes of silence. The power saving mode can be turned ON/OFF with the switch on the rear panel.



General:

Enclosure type: 2-way bass reflex

Units: 75 mm cone woofer, 19 mm soft dome tweeter

Amplifier output: 15 W + 15 W

Freq. response: 100 Hz~40 kHz

External Dimensions: 110 mm (W) x 212 mm (H) x 133 mm (D)

Weight: 3.4 kg (1 pair)

Bluetooth®:

Communication system: Bluetooth standard Ver. 5.0

Output: Bluetooth standard Power Class 1

Communication distance : Approx. 10 m *with no obstructions

Used frequency band: 2.4 GHz band

Supported profiles: A2DP

Supported codecs: SBC, AAC

Supported Content Protection : SCMS-T method

Transmission bandwidth: 20 Hz-20 kHz

USB:

Port: USB type C

Interface: USB2.0 High Speed

Sampling frequency: 44.1/48.0/88.2/96.0 kHz

Bit depth: 16/24 bit

AUX:

Terminal: Stereo mini jack

Input Sensitivity: 500 mVrms

Maximum input: 2 Vrms

SUB-OUT (LR Mix):

Terminal: RCA pin jacks (output linked to front panel volume)

Power Supply /AC Power Adapter:

Input: AC 100 V-240 V (50 Hz/60 Hz)

Output: DC 15 V 3.2 A

Accessories: AC power adapter, one-touch speaker cable (1.5 m), USB cable (Type-A – Type-C, 1 m), stereo mini – RCA pin x 2 cable (1 m), safety precautions, user manual
