GCM113 Overhead Cardioid Condenser Gooseneck Microphone

Model: GCM113
UPC: 631922110456
Please log in to see your price
The Astatic GCM113 is a professional overhead condenser microphone designed for discreet, ceiling mounted installations where clear, intelligible speech and natural sound pickup are required
Related products
About This Product

Description:

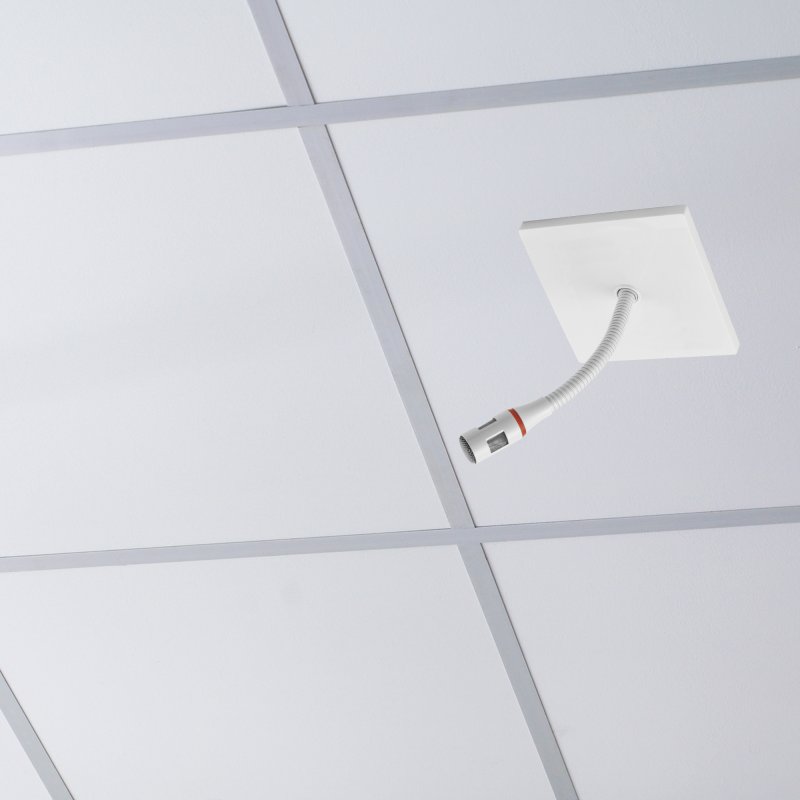

The Astatic GCM113 is a professional overhead condenser microphone designed for discreet, ceiling mounted installations where clear, intelligible speech and natural sound pickup are required. Featuring a cardioid pickup pattern and a short flexible gooseneck, the GCM113 is optimized for low ceiling environments and precise microphone positioning. Its clean, low profile design allows the microphone to blend seamlessly into conference rooms, classrooms, houses of worship, and distance learning spaces while delivering consistent, high quality audio performance.

Engineered for modern installed sound systems, the GCM113 provides excellent RF shielding, effectively rejecting interference from mobile phones and other wireless devices common in meeting spaces. A built in 100 Hz high pass filter reduces low frequency noise while maintaining natural voice clarity, and the wide dynamic range supports confident speech reproduction with high gain before feedback. Powered by standard phantom power (DC 24–52V) and terminating in a convenient 3 pin quick connector, the GCM113 installs easily into standard electrical boxes for fixed or suspended ceiling applications.

Overhead condenser microphone for ceiling mounted installations

Cardioid polar pattern for focused pickup and improved isolation

Short flexible gooseneck enables optimal aiming in low ceiling spaces

Excellent RF shielding minimizes interference from mobile devices

Built in 100 Hz high pass filter (18 dB/octave) reduces low frequency noise

High gain before feedback with flat, natural frequency response

Phantom powered operation (DC 24–52V) for wide system compatibility

Quick connect output and standard electrical box mounting for fast installation

Microphone Type: Condenser

Polar Pattern: Cardioid

Frequency Response: 35 Hz – 18 kHz

High‑Pass Filter: 100 Hz, 18 dB/octave

Sensitivity: –32 dB (1 V/Pa)

Output Impedance: 200 Ω

Maximum SPL: 130 dB SPL (1 kHz @ 1% THD)

Dynamic Range (typical): 110 dB

Signal‑to‑Noise Ratio: >68 dB (1 kHz @ 1 Pa)

Power Requirements: Phantom power DC 24 – 52 V

Current Consumption: 20 mA (typical)

Output Connector: 3‑pin fast euro connector

Recommended Pickup Distance: 10 – 20 cm

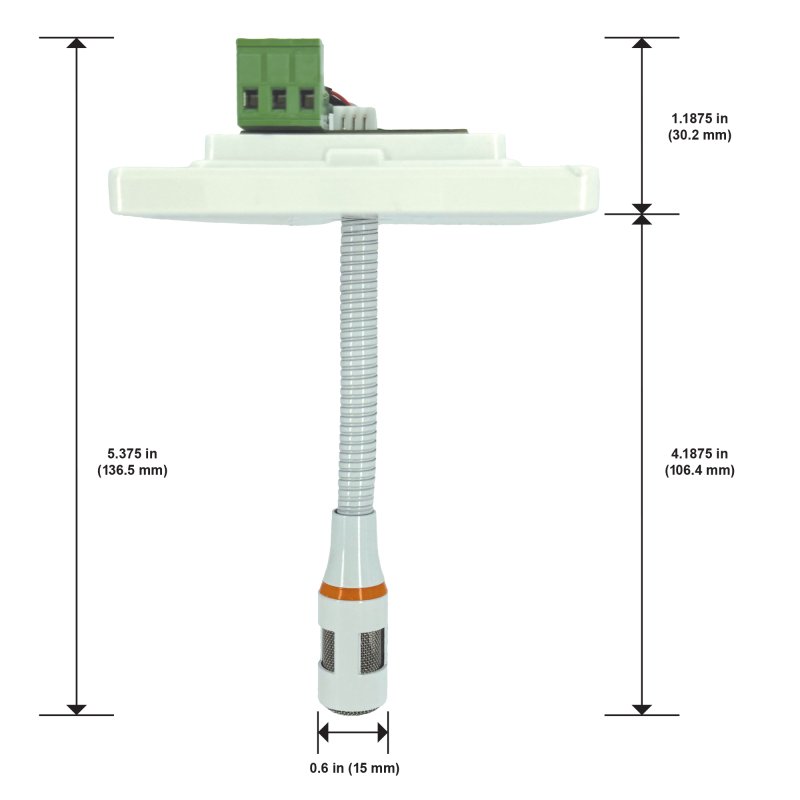

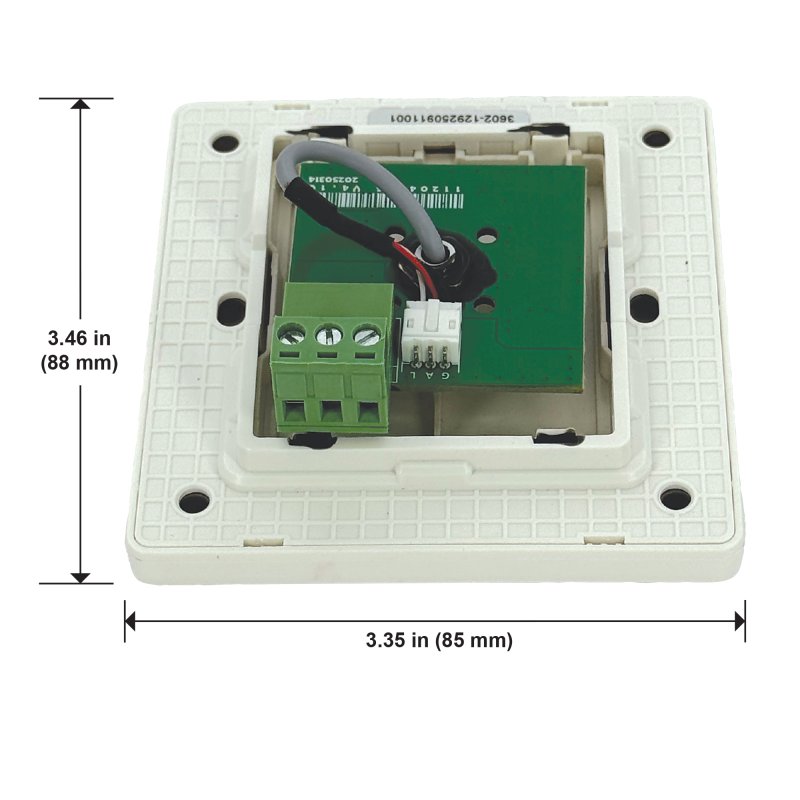

Dimensions: 90 × 86 × 135 mm

Weight: Approx. 135 g

Finish: White
