More Memory, More Layers: With increased memory, up to 4 multi-timbral layers are now possible. In addition to layered and split modes, round-robin and random-robin modes allow the creation of rich, complex sonic landscapes, perfect for sound designers, sonic explorers, and cinematic artists.
“Seeds”: The Sixth Synthesis Sense: Extra RAM enables a sixth synthesis method per oscillator. Inspired by wavetable synthesis, in which each wavetable represents a timbral journey, Waldorf has found a way to base these timbral journeys not only on static waveforms but also to dynamically synthesize each waypoint from sub-oscillators called ""Seeds"".
“Flavour” Knob: Introduced with Protein, it adds sonic liveliness via micro-variations in timing, timbre, pitch, and other parameters.
Per-Note Parameter Locks (ft. Aphex Twin): As a new special feature resulting from a collaboration with Aphex Twin, each of 128 notes can have up to 16 individual parameter variations, including the synthesis mode of oscillators and effect parameters. Changes are saved per patch and editable on a dedicated page.
Specification:
Compatible with the Waldorf Quantum synth engine
Software: Waldorf Synthesis Platform OS 4.0 or later

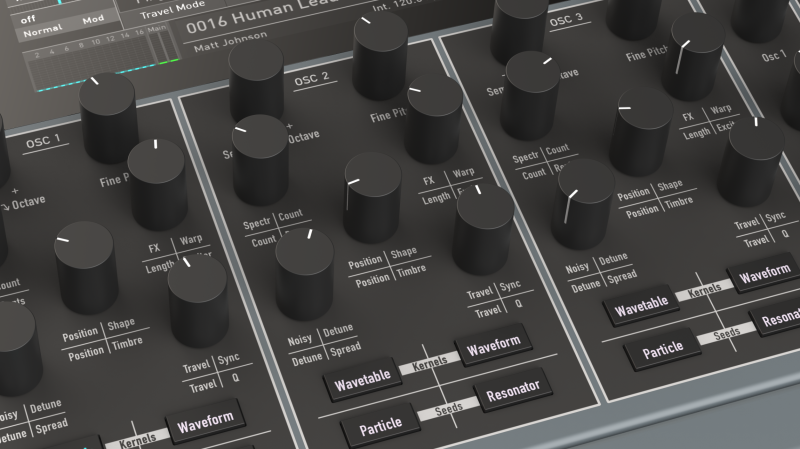

Oscillators:
3 Oscillators each capable of 6 synthesis modes:
Wavetable
Waveform
Particle in Multi-Sampling and Granular mode with extended Sample RAM
Resonator
Kernels (up to 6 sub-oscillators which can be interlinked through FM, AM or Wavetable-position
at audio rate)
Seeds: Waypoint synthesis providing timbral journeys using sub-oscillators based on
various methods like Ring Modulation, FM, Wavetable, Partials and various Noise/Dirt
Types.
Dual Stereo Filters per voice :
True stereo path Dual Digital Filter with independent modes:
12/24dB LP/HP/BP in all combinations
Nave, Largo, PPG, Quantum and StateVariable models
Analyzer displayed in Filter view
Filter curve animation when modulated (optional)
Sophisticated filter routing options with modulatable panning and levels
Digital Former:
Filter models like State Variable, Raiser, Waldorf Nave, Largo and PPG in HP/LP/BP/Notch
Comb filters, Bit-Crusher, various Drives, Ring-Modulation, Formant Filters
Modulators:
6 Envelopes
6 LFOs
Komplex Modulator (LFO/Envelope combination with user-definable shape and morphing)
Per-Note-Parameter-Locks, allowing individual parameter variations per note inspired by
Aphex Twin
‘Flavour‘ control for micro-variations in timing, pitch, and timbre
Mod Matrix:
40 slots
Fast assign mode
One additional control amount per slot
Identical Sources and Destinations can be used multiple times until the matrix is full
Effects:
5 slots per layer
Various parallel and sequential routing options
Reverb, Delay, Chorus, Phaser, Flanger, Drive, EQ, Compressor, Tremolo
Performance features:
Advanced Arpeggiator
New polyphonic Arpeggiator modes
Step-sequencer with up to 64 steps for notes and parameters
4×4 silicon pad matrix with RGB backlights assignable to notes, scales or chords
Favourites screen for quick patch recall
XY control on touchscreen
Wheels touchscreen for MIDI controls like mod wheel, pitch bend, aftertouch and velocity
MPE capable

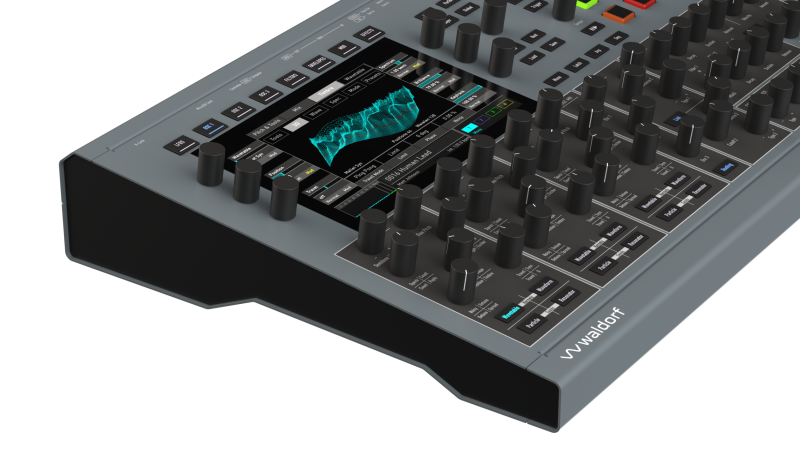

Screen:
Industrial-grade highly responsive touch screen with Brightness control
1024x600 pixels
Voices:
16 voice polyphony
Multi-Timbral with 4 layers
Advanced multi-timbral modes such as round-robin and random-robin
Mono, Legato and Unisono
Patches:
Over 1750 factory patches
Capacity of 7000 patch memory slots (numbers 0000-9999 can be used)
Patches from Quantum and other Iridium variants can be loaded and vice-versa
Category filter for patch list
4 GB sample flash memory preloaded with 2 GB factory samples
‘Mutator‘ patch randomizer

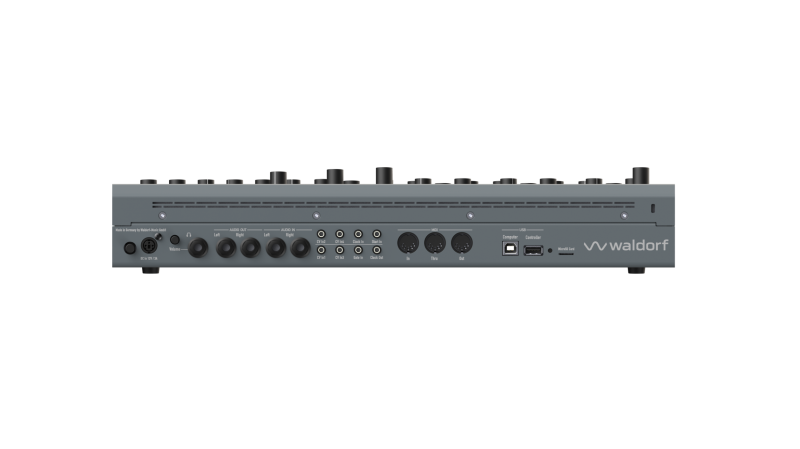

Connections:
Stereo Audio Out: 2x TS jacks
Stereo Audio In: 2x TS jacks
Headphones TRS output with level control
DIN MIDI In, Out & Thru
USB Type B (device) for MIDI connection to computer
USB Type A (host) for storage media and MIDI devices
MIDI 2.0 compatible
MicroSD slot
4 high-resolution CV Inputs which can be used as modulation sources in the Mod-Matrix
Analog clock In & Out with clock divider settings
Analog gate and start inputs
Kensington® compatible lock
Overall:
Sturdy metal case with aluminum knobs
Dimensions: 440 mm wide by 305 mm depth by 85 mm height (including controls)
Weight: 4.8 kg
VESA 75 recepticle on the bottom (mountable on monitor stand using the VESA standard)
19″ rack assembly parts available
External Power Supply: Input 100-240 V / AC 50-60 Hz, Output 12 V DC / 3 A
What’s In the Box?:

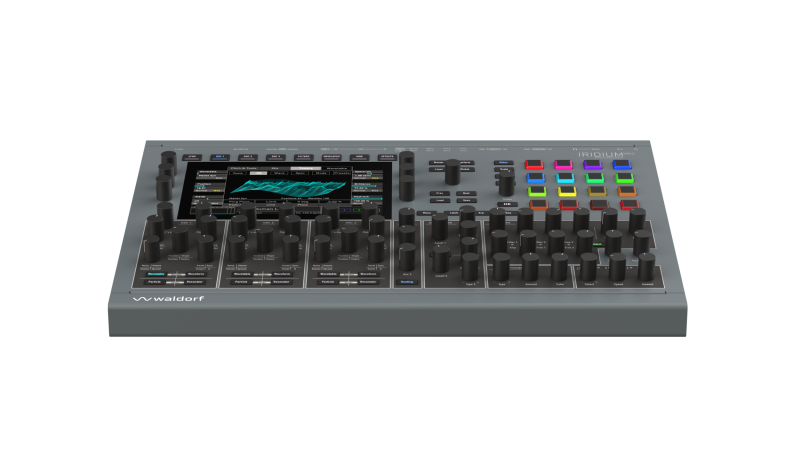

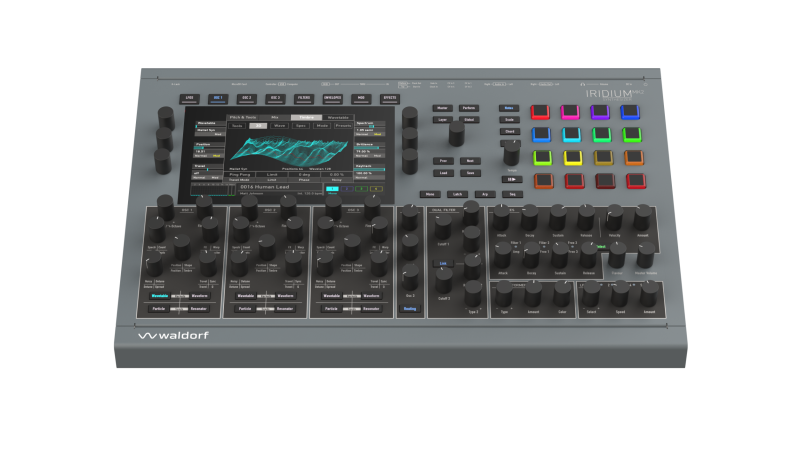

Iridium Desktop MK2 Synthesizer
Power Supply
Printed Quick Start Guide
