Specification:
Compatible with the Waldorf Quantum synth engine
Software: Waldorf Synthesis Platform OS
Oscillators:
3 Oscillators each capable of 5 synthesis modes:
Wavetable
Waveform (VA)
Particle (Sampling and Granular Sampling)
Resonator
Kernels (up to 6 sub-oscillators which can be interlinked through FM, AM or Wavetable-position
at audio rate)
Dual Stereo Filters per voice:
True stereo path Dual Digital Filter with independent modes:
12/24dB LP/HP/BP in all combinations
Nave, Largo, PPG, Quantum and StateVariable models
Analyzer displayed in Filter view
Filter curve animation when modulated (optional)
Sophisticated filter routing options with modulatable panning and levels
Digital Former:
Filter models like State Variable, Waldorf Nave, Largo and PPG in HP/LP/BP/Notch
Comb filters, Bit-Crusher, various Drives, Ring-Modulation
Modulators:
6 Envelopes
6 LFOs
Komplex Modulator (LFO/Envelope combination with user-definable shape and morphing)
Mod Matrix:
40 slots
Fast assign mode
One additional control amount per slot
Identical Sources and Destinations can be used multiple times until the matrix is full
Effects:
5 slots per layer
Various parallel and sequential routing options
Reverb, Delay, Chorus, Phaser, Flanger, Drive, EQ, Compressor, Tremolo
Performance features:
Advanced Arpeggiator
Step-sequencer with up to 64 steps for notes and parameters

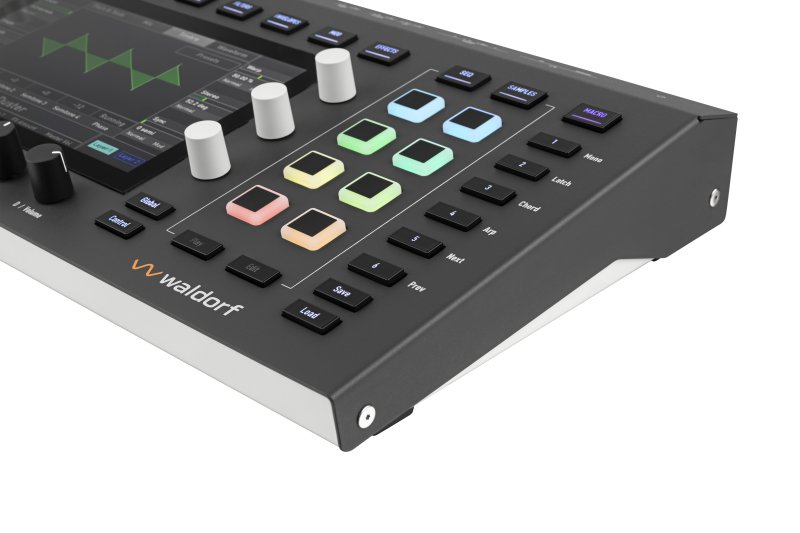

2x4 button pads assignable to notes or chords
4 user-assignable potentiometers6 user-configurable macro buttons
Favourites screen for quick patch recall
XY control on touchscreen
Wheels touchscreen for MIDI controls like mod wheel, pitch bend, aftertouch and velocity
MPE capable

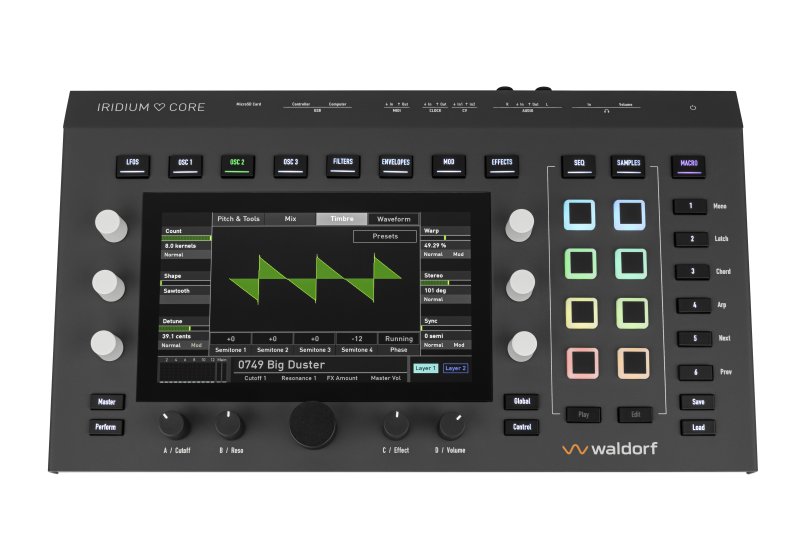

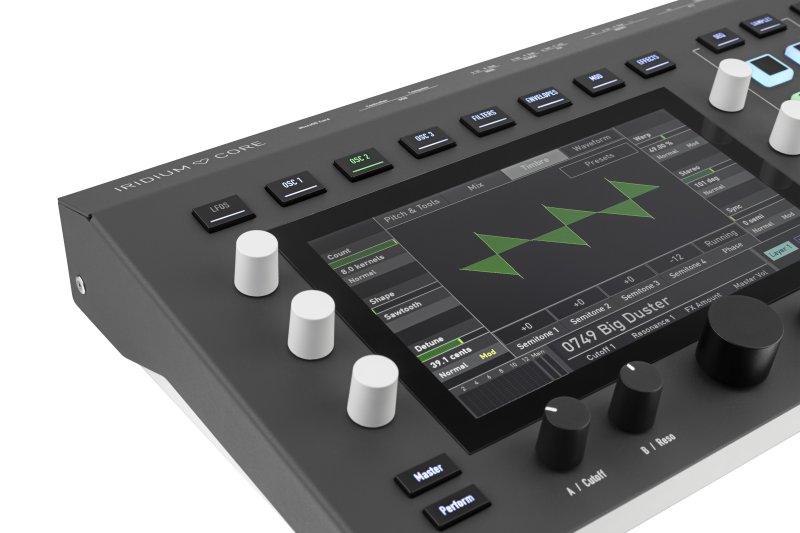

Screen:
Industrial-grade highly responsive touch screen with Brightness control
1024x600 pixels
Voices:
12 voice polyphony
Duo-timbral
Mono, Legato and Unisono modes
Patches:
Over 1700 factory patches
Capacity of 7000 patch memory slots (numbers 0000-9999 can be used)
Patches from Quantum and other Iridium variants can be loaded and vice-versa
Category filter for patch list
2.6 GB sample flash memory preloaded with 2 GB factory samples

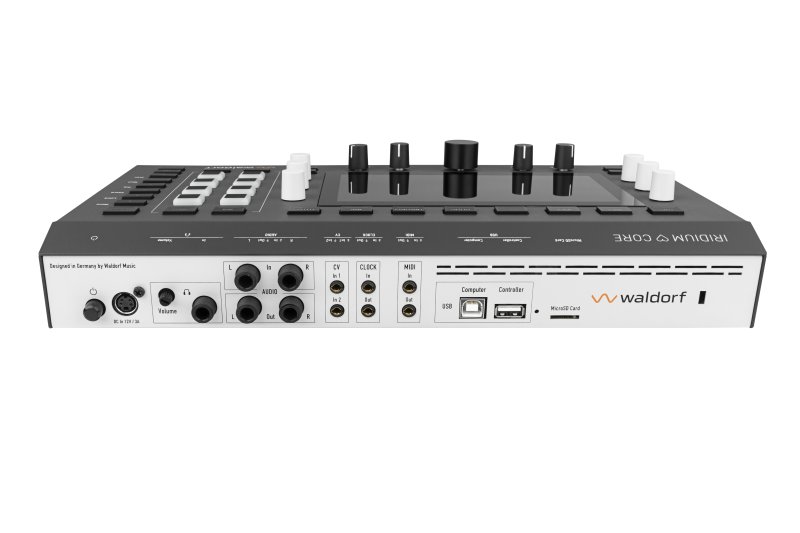

Connections:
Stereo Audio Out: 2x TS jacks
Stereo Audio In: 2x TS jacks
Headphones TRS output with level control
DIN MIDI IN & Out, mini-TRS Type A (two adapters to DIN MIDI sockets included)
USB Type B (device) for MIDI connection to computer
USB Type A (host) for storage media and MIDI devices
MicroSD slot
2 high-resolution CV Inputs which can be used as modulation sources in the Mod-Matrix
Analog clock In & Out with clock divider settings
Overall:
Sturdy metal case
Dimensions: 346 mm wide by 200 mm depth by 64 mm height (including controls)
Weight: 2.2 kg
External Power Supply: Input 100-240 V / AC 50-60 Hz, Output 12 V DC / 3 A
What’s In the Box?:
Iridium Core Synthesizer
Two MIDI adapters: mini TRS to DIN sockets
Power Supply
Printed Quick Start Guide
