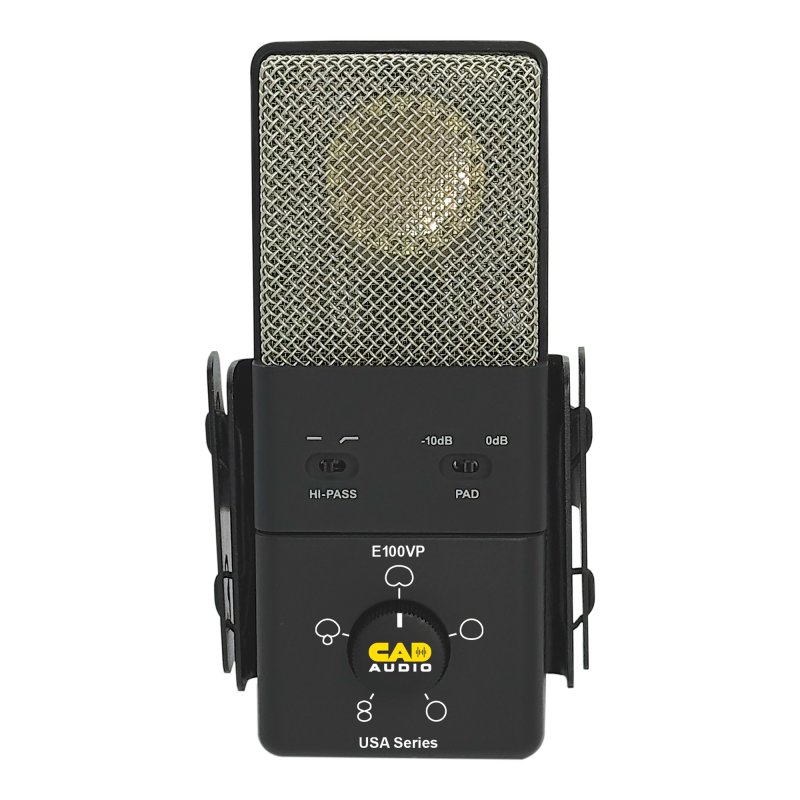

CAD E100VP USA Series Equitek Large Diaphragm Variable Pattern Studio Condenser Microphone

Model: AMS-E100VP
UPC: 631922110418
Please log in to see your price
The Equitek™ E100VP is a fifth‑generation, USA‑built condenser microphone that continues a decades‑long legacy of studio excellence
Related products
About This Product

Description:

The Equitek™ E100VP is a fifth‑generation, USA‑built condenser microphone that continues a decades‑long legacy of studio excellence. Known for its warm, vintage character and smooth, articulate sound, the E100VP delivers exceptional detail and musicality for both studio recording and live applications.

At its core is a gold‑plated 1‑inch large‑diaphragm capsule designed for rich vocals and precise instrument reproduction. A continuously variable polar pattern control allows seamless adjustment between omnidirectional, cardioid, supercardioid, subcardioid, and figure‑8 patterns—offering unmatched flexibility in any recording environment.

With high sensitivity, low self‑noise, and low distortion, the E100VP captures subtle performance nuances with clarity. Additional features include a 100 Hz high‑pass filter, 10 dB pad for high‑SPL sources, and a low‑profile shock mount to reduce mechanical noise in tight setups. Versatile and professional‑grade, the CAD Audio E100VP excels on vocals, acoustic instruments, percussion, and amplifiers—making it a powerful, enduring centerpiece for any studio or stage.

Continuously-variable pattern for precise tuning

1" gold-plated capsule

High Sensitivity, Low Noise, Low Distortion

Highly effective low-profile shock mount

Smooth, articulate true-to-life reproduction

Ideal for voice-over, acoustic instruments, percussion, podcasting, or vocal performance

2 Year Warranty

Principle: Externally-biased Condenser

Polar Pattern: Variable

Frequency Response: 20Hz - 20kHz

Sensitivity:

Cardioid: -37dBV (14mV) @ 1Pa

Omnidirectional: -40dBV (10mV) @ 1Pa

Figure-of-8: -34dBV (20mV) @ 1Pa

Impedance: 50ohms

Max SPL:

Cardioid: 127dB 1% THD

Omnidirectional: 134dB 1% THD

Figure-of-8: 128dB 1% THD

Cardioid: 137dB (Pad engaged)

Omnidirectional: 144dB (Pad engaged)

Figure-of-8:138dB (Pad engaged)

Self Noise (Capacitor Substitution Method):

Cardioid: 9dBA

Omnidirectional:12dBA

Figure-of-8: 4dBA

Dynamic Range

Cardioid: 118dB

Omnidirectional: 123dB

Figure-of-8:124dB

Low Cut: 100Hz 6dB/oct

Pad: -10dB

Signal-to-Noise Ratio:

Cardioid: 85dB

Omnidirectional: 80dB

Figure-of-8: 90dB

Power Requirements: P48, 3.5mA

Weight: 1.98lbs [0.9Kg]

Dimensions:

(Mic only): 6.0625" (15.4cm) tall

2.245" (5.7cm) wide

2.108" (5.35cm) deep

With shock mount: 6.0625" (15.4cm) tall

2.903" (7.37cm) wide

5.555" (14.11cm) deep

Included Accessories: Shock mount

RoHS: Compliant
