Analogue signal path:
o Low-noise, high-gain RIAA preamp.
o 3-band isolator EQ.
o Warm pure analogue summing.
o Matched Phono/Line inputs.
Classic Xone:VCF (Voltage Controlled Filter)
Mini InnoFADER crossfader.
Master insert / FX with switch.
Tactile illuminated switches with backlight.
Latching/non-latching Cue modes.
RGB chromatic channel meters.
USB-C Audio/MIDI Interface:
o 96kHz, 24-bit, class-compliant operation (Mac, Windows, iOS)
o 3 modes:
• Stream
• DVS Pro
• DAW
o MIDI Output from:
• Mini Innofader
• Filter: HPF / LPF & Freq
• Channel: Filter, Cue, Faders
• Master Insert In
Dual-port powered USB hub

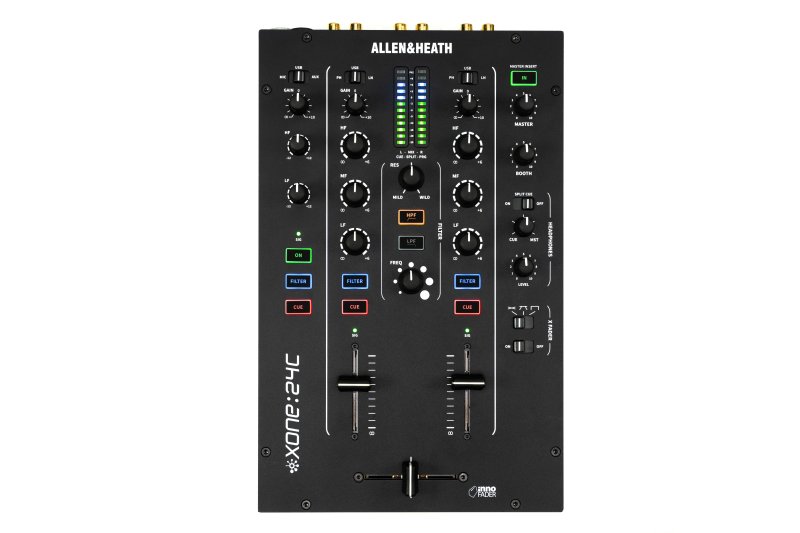

Model Xone:24C
Type Hybrid: Analogue + Internal USB-C Soundcard and Dual-port USB-C hub
Channels 2 + 1: CH1 & CH2: PHONO/USB/LINE ¦ AUX CH: MIC/USB/LINE
EQ
3-band Isolator EQ: -∞/+6dBu (CH1 & CH2)
High Frequency 3.5kHz
Mid Frequency: 1.1kHz
Low Frequency: 500Hz
2-band: +/- 12dBu (Auxiliary Channel)
High Frequency 900Hz
Low Frequency: 750Hz

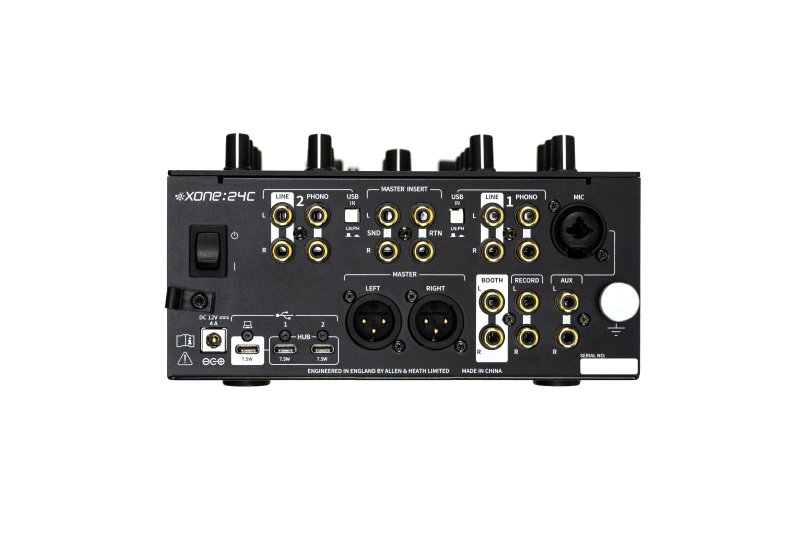

Line Inputs 3 x Stereo RCA (CH1 & CH2 + AUX CH)
Phono Inputs 2 x Stereo RCA (CH1 & CH2)
Mic Input 1 x Combi (XLR + TRS)
Master Output 1 x Stereo XLR (Balanced)
Booth Output 1 x Stereo RCA (Un-balanced)
Record Output 1 x Stereo RCA (Un-balanced)
Master Insert 1 x Stereo RCA MASTER INSERT FX Loop*
*Send/Return I/O 1 x Stereo RCA MASTER INSERT Send
1 x Stereo RCA MASTER INSERT Return
*FX Send MASTER INSERT IN
Filter
1 x Stereo Analogue Voltage Controlled Filter
HPF / LPF
Adjustable Frequency & Resonance
Assignable CH 1 & CH2 + Aux CH

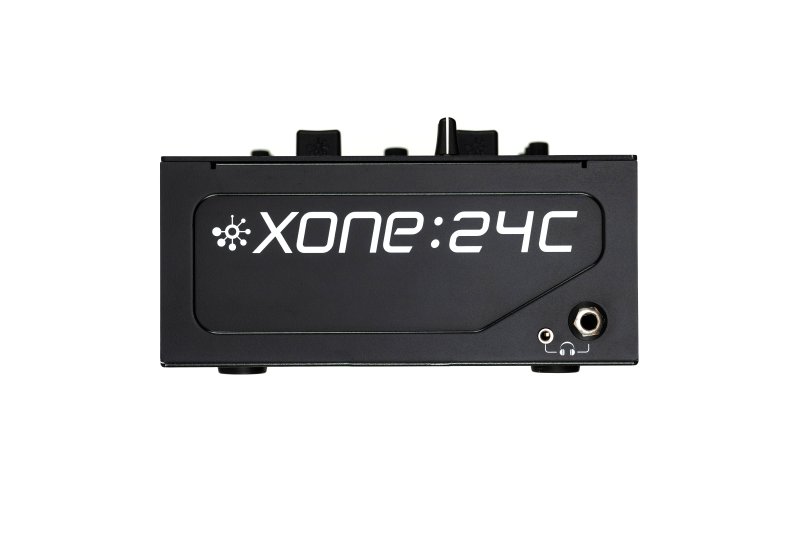

Headphones
1 x 6.35mm Stereo Jack
1 x 3.5mm Stereo Jack
Split Cue Monitoring
Channel Faders 45mm Linear Voltage Controlled Amplifier
Chanel Meters Single tri-colour LED
X-Fader 45mm Linear VCA: mini InnoFADER®
X-Fader Curve Settings 2 Types (Fast-Cut/Blend)
Internal Soundcard 6 Channel ¦ 32-bit/96kHz ¦ USB 2.0
3 x Stereo In (CH1/CH2/Master) ¦ 3 x Stereo Out (CH1/CH2/Aux CH)
MIDI Assignable YES: MIDI CC: CH1 & CH2 Faders, Crossfader, VCF FREQ
NOTE ON/NOTE OFF: CUE, FILTER, HPF, LPF, MASTER INSERT IN
MIDI Out 1 x USB Host Port (Type C)
2 x USB Hub ports: Hub-to-Host/Host-to-Hub only (Type C)
Earth Ground Terminals x 1
Power Supply
DC Mains: 100 to 240V
AC 50/60Hz
Consumption 35W max
USB Power delivery: USB Host 7.5W (Type C) ¦ USB Hub 2 x 7.5W (Type C)
Mains Adaptor 2 pin DC socket with cable clamp
